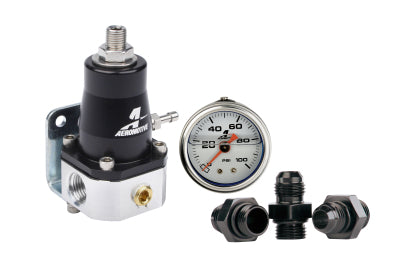

Aeromotive EFI Bypass Regulator kit (AER13130)

Description

Aeromotive EFI Bypass Regulator 1:1 30-70 psi Base Adjustable

This EFI Bypass Regulator encompasses features and benefits only found on Aeromotive regulators and in a new smaller and lighter package. Capable of supporting applications up to 1000 HP, the 13129 EFI Bypass Regulator can handle high-flow EFI fuel pumps and the most aggressive street machines; especially those looking for a cleaner, lighter solution where performance is critical or where space is a premium.

• Base pressure adjustable from 30-70 psi
• Fuel pressure rises on a 1:1 ratio with boost
• Provides (2) ORB-06 inlet/outet ports and (1) ORB-06 return port
• 1/8” NPT gauge port
• Vacuum boost port
• CNC-Machined 6061 T6 billet aluminum construction
• Stainless steel mounting bracket

Aeromotive 0-100 psi Fuel Pressure gauge Liquid Filled

• Fuel Pressure Gauge
• 1.5” Diameter
• 0-100 PSI
• Liquid Filled
• Includes integral pressure relief valve.

Aeromotive ORB-06 to AN-06 Male Flare Fitting

More area and smoother transitions from the inlet to the outlet, resulting in less restriction than any other fitting line.

The Aeromotive line of custom fittings, adapters and hose-ends are a step above the norm, offering uncompromised fuel flow and positive sealing. Constructed of 6061 T6 aircraft grade aluminum or stainless steel, each component is CNC-machined for precision fit and unmatched flow. All billet aluminum fittings are anodized Type II bright dip black for corrosion protection and unrivaled aesthetics. We offer a complete line of hard to find fittings from OEM specific connections to AN adapters.

All Aeromotive fittings and adapters are fully compatible with gasoline and alcohol based fuels.

SKU: AER13130
