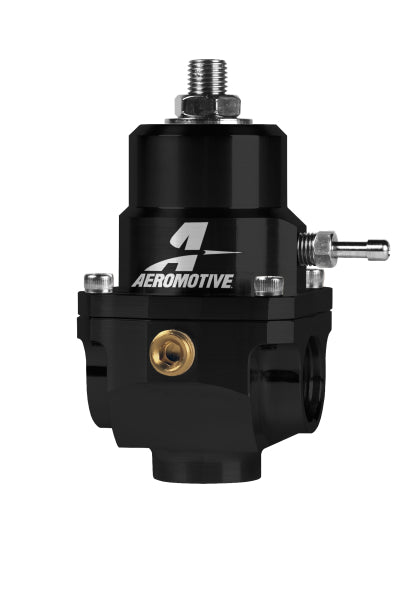

Aeromotive X1 EFI Pro Return Style Regulator (13305)

Description

With the X1 regulator, you can easily switch from carbureted to EFI pressures without buying another one. Simply get a conversion kit and replace the internals for different characteristics. It's also 33% smaller and lighter than the Aeromotive 13109 regulator, and has larger ports for increased flow. And it still has features like a gauge port and boost reference for forced induction. Not legal for use on emission-controlled vehicles (unless as a direct replacement).

Features/Benefits

• Base fuel pressure adjustable from 35-75 PSI.
• Vacuum/Boost reference capability.
• 1:1 rising rate for forced induction engines.
• Gasoline, ethanol, alcohol and diesel compatible.
• 2 – ORB -08 inlet/outlet ports on the sides.
• 1 – ORB-08 return port on the bottom port.
• 1 – 1/8″ NPT Gauge Port with plug.
• 1/16″ NPT Boost Port with 5/32″ hose barb.
• Compatible with X1 EFI Conversion kit.
• Compatible with X1 Carb Conversion kit.
• 0.313″ return style with matching spring and poppet.
• Handles up to 250 GPH with AN-08 return line.
• Ideal for high flow-Aeromotive Pumps including Eliminator, Pro-Series, Brushless 3.5 and 5.0.
• Mounting bracket included (not shown).


Applications

• Universal

What's In The Box?

• 1 - Regulator (13305)

How To Install (similar Item)

SKU: AFS13305
