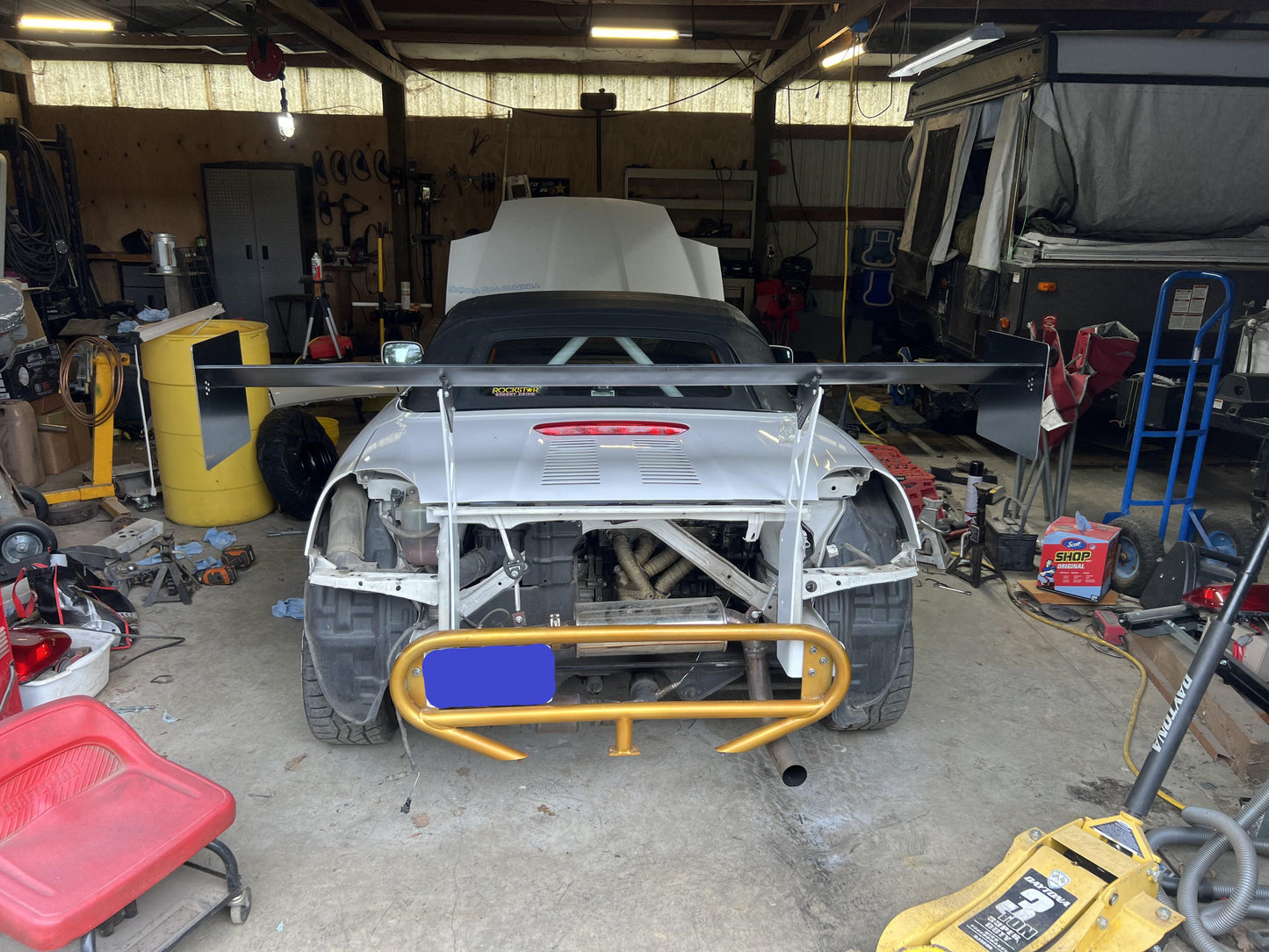

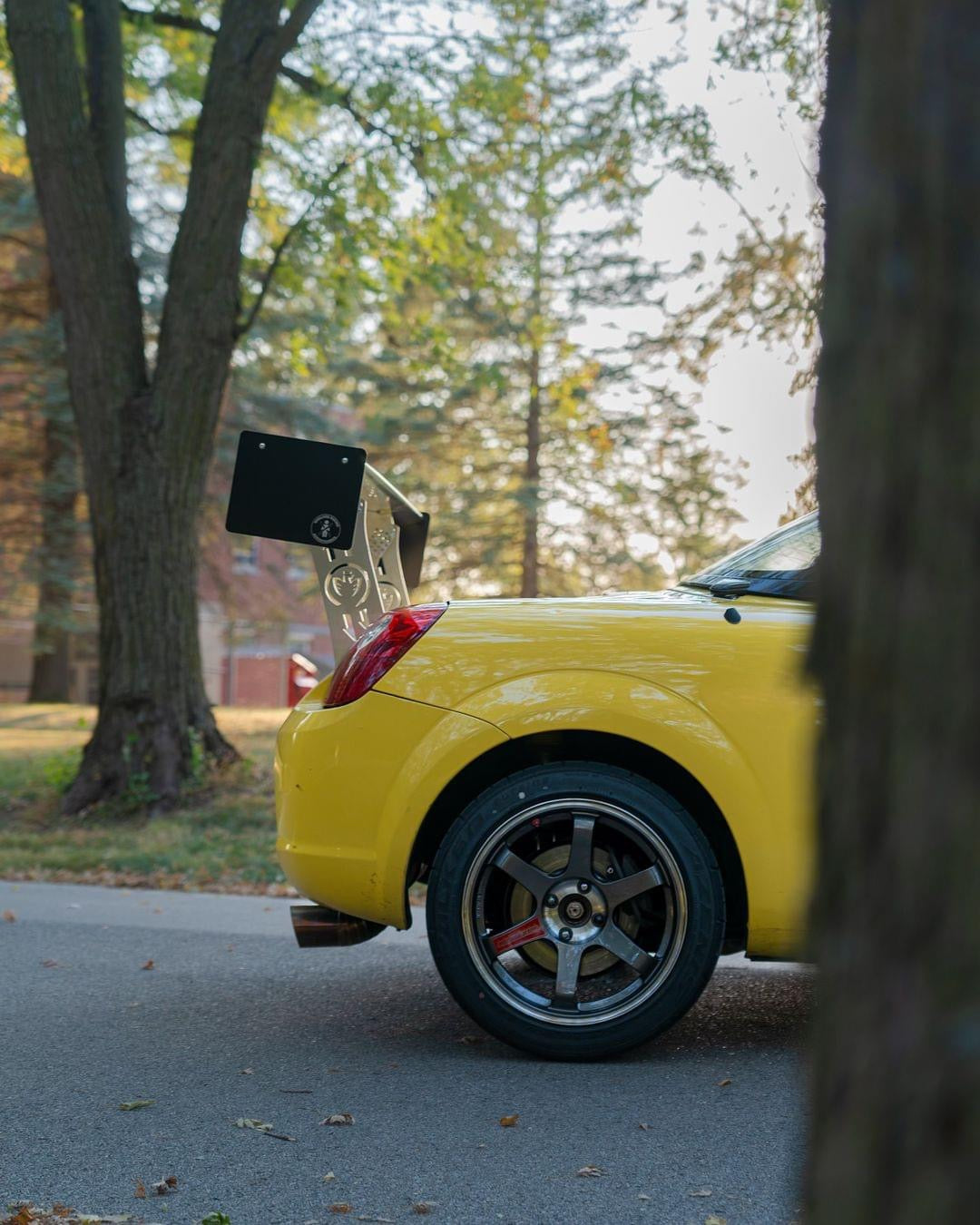

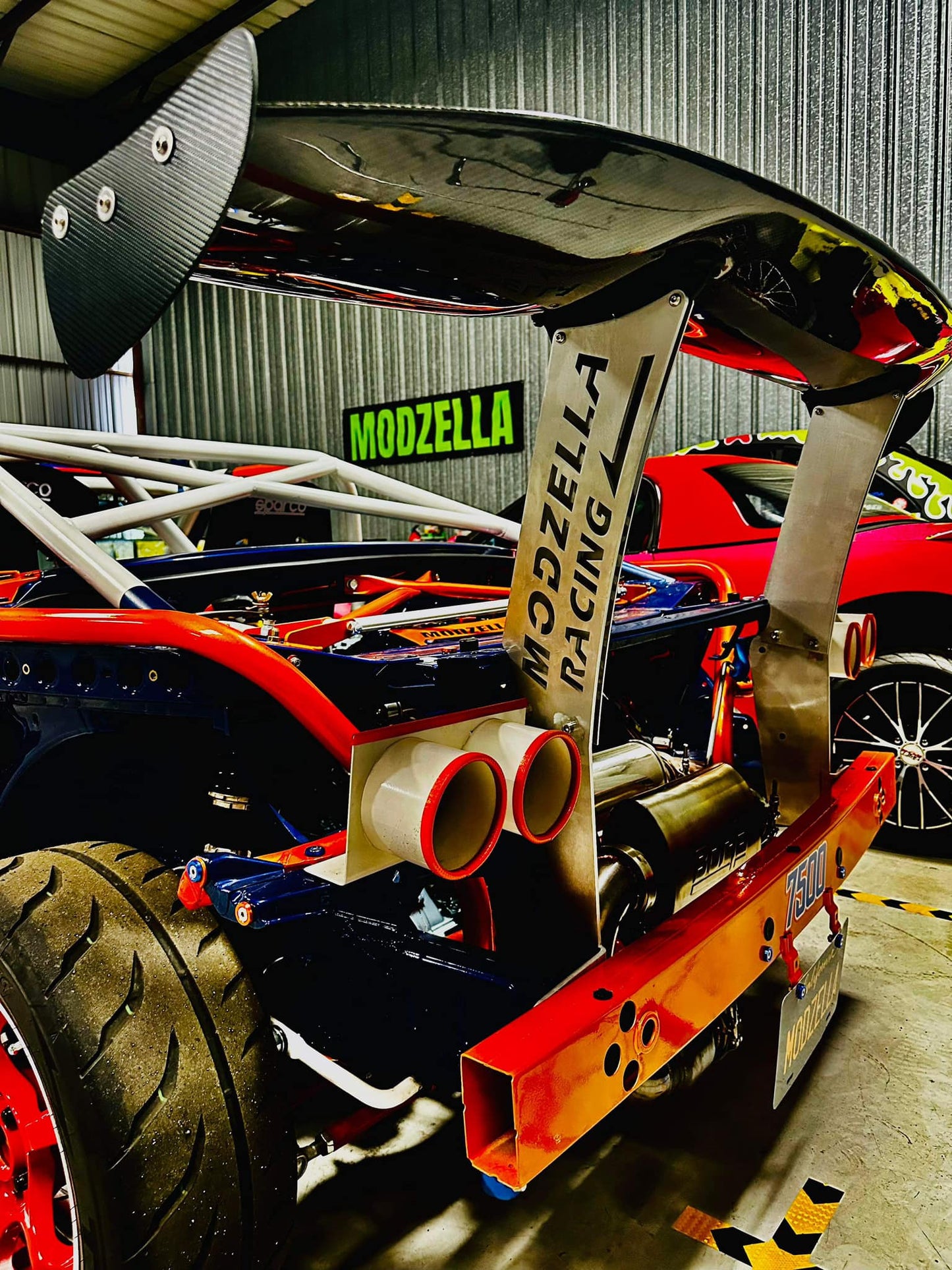

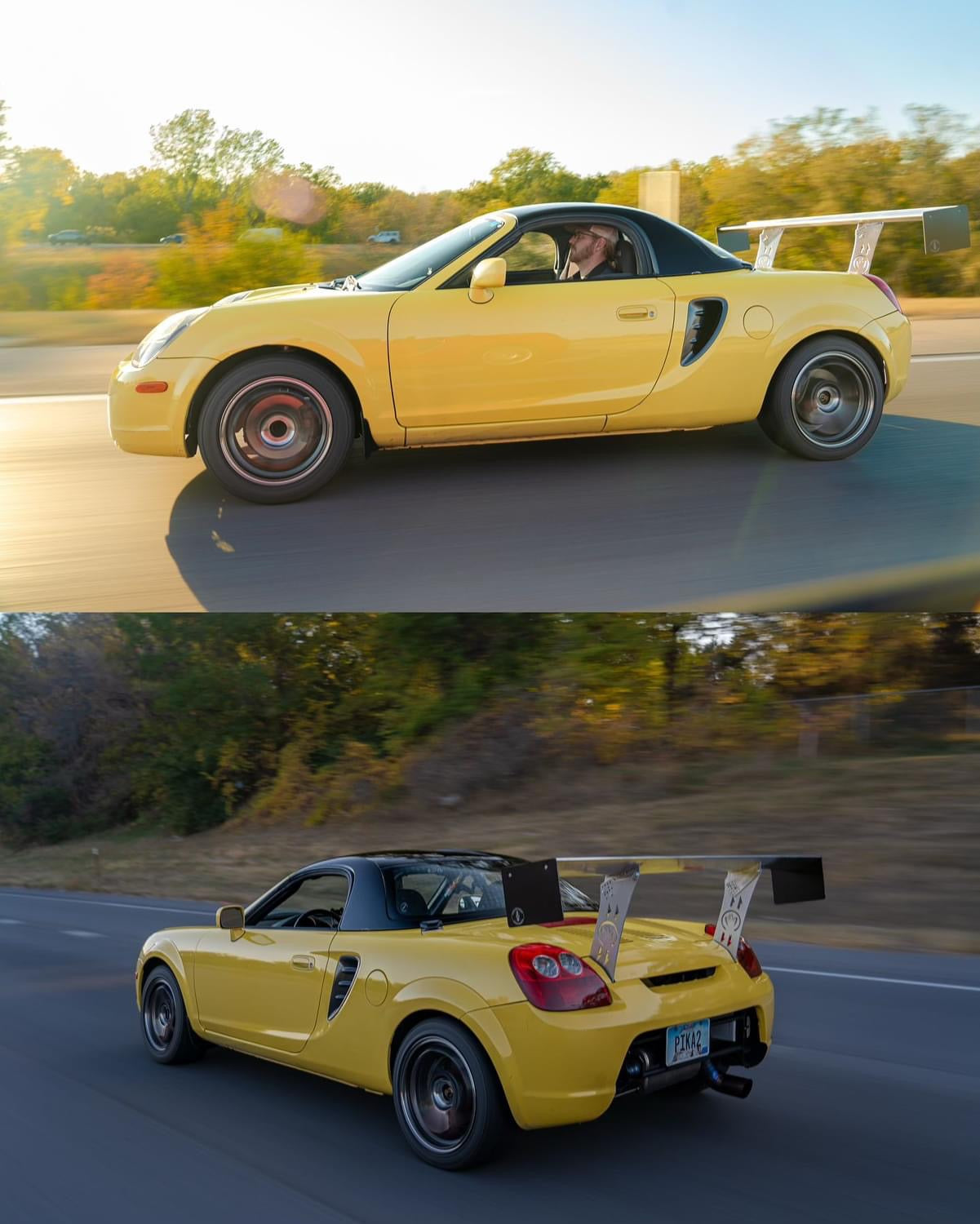

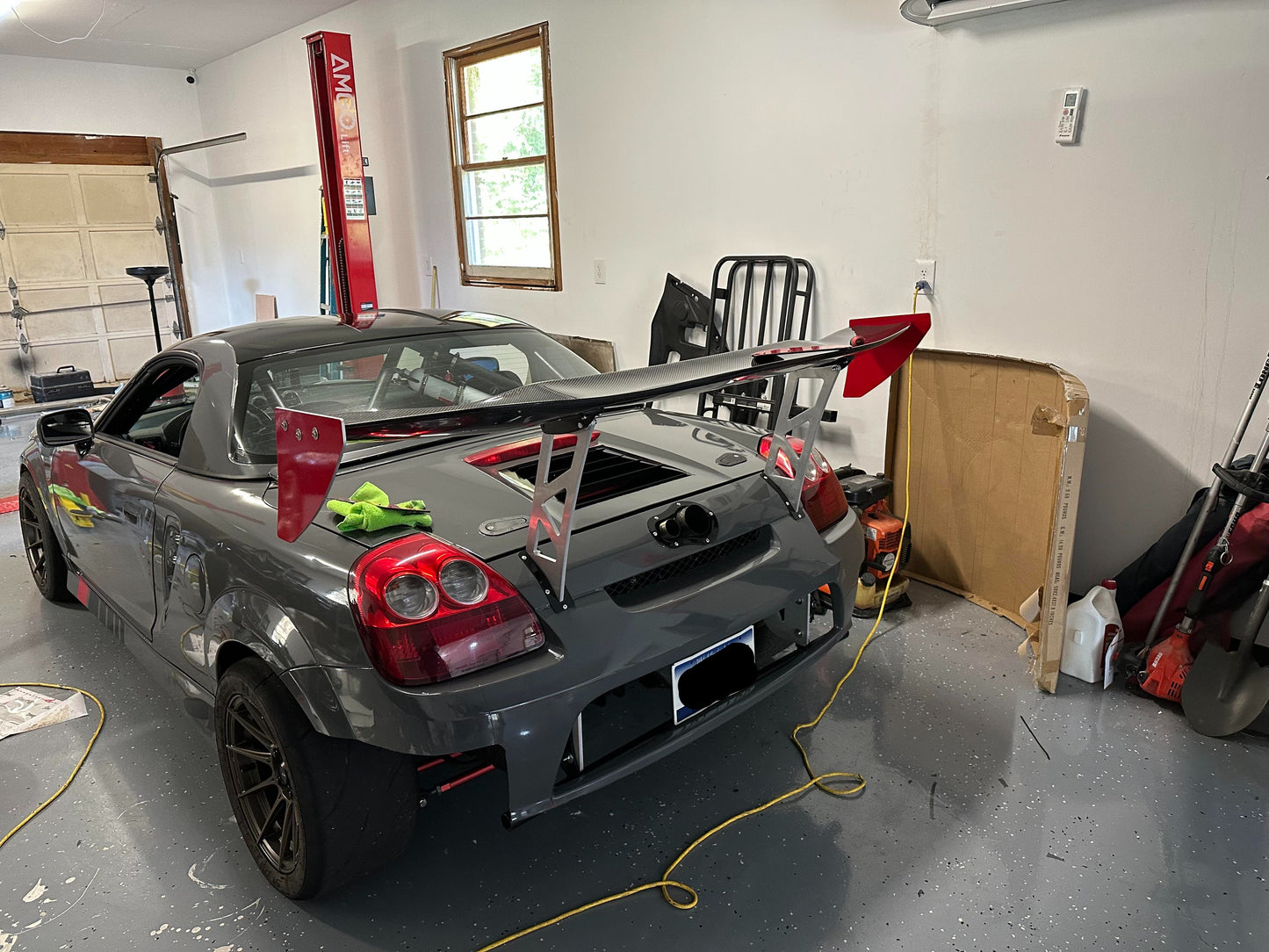

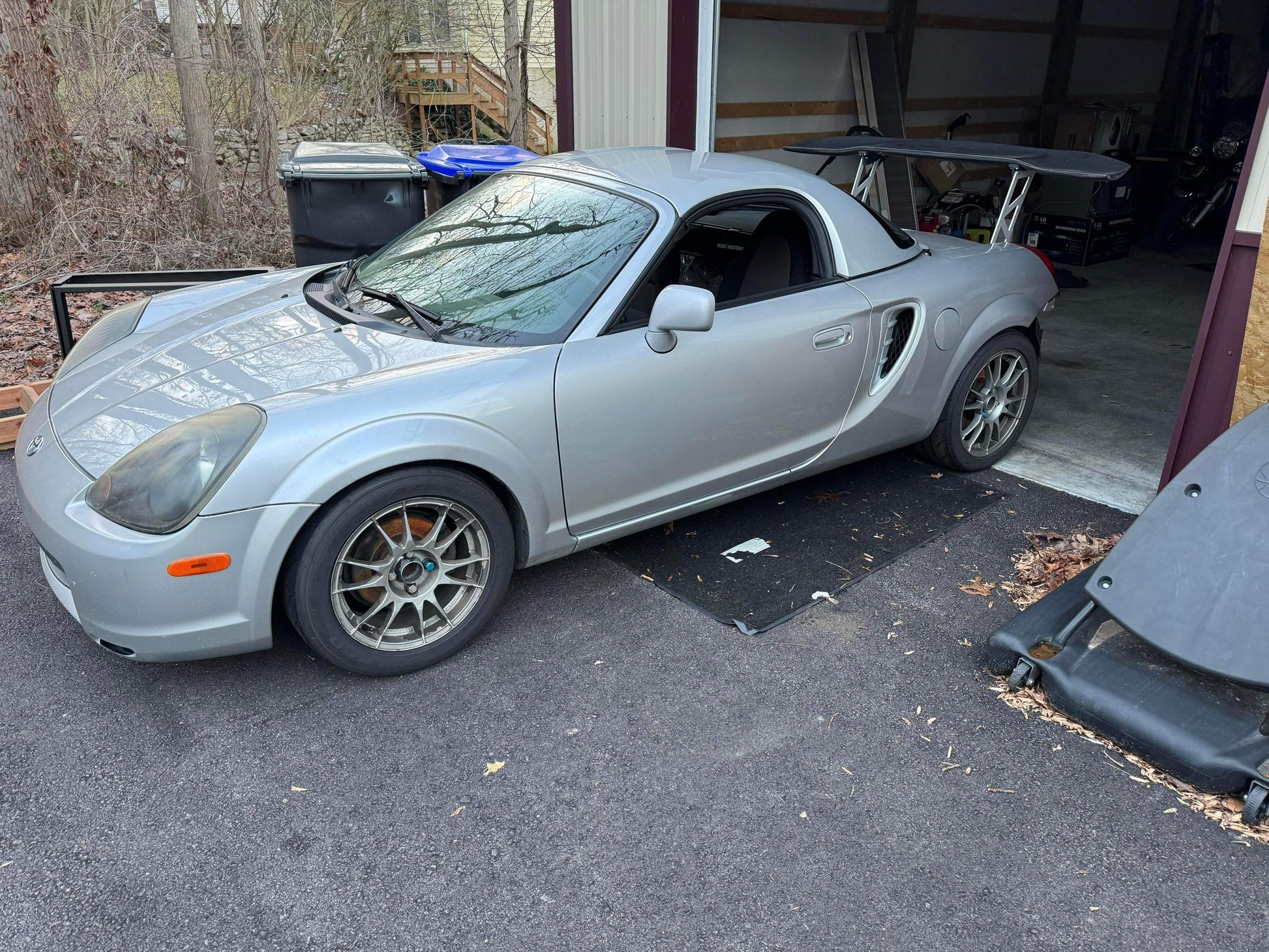

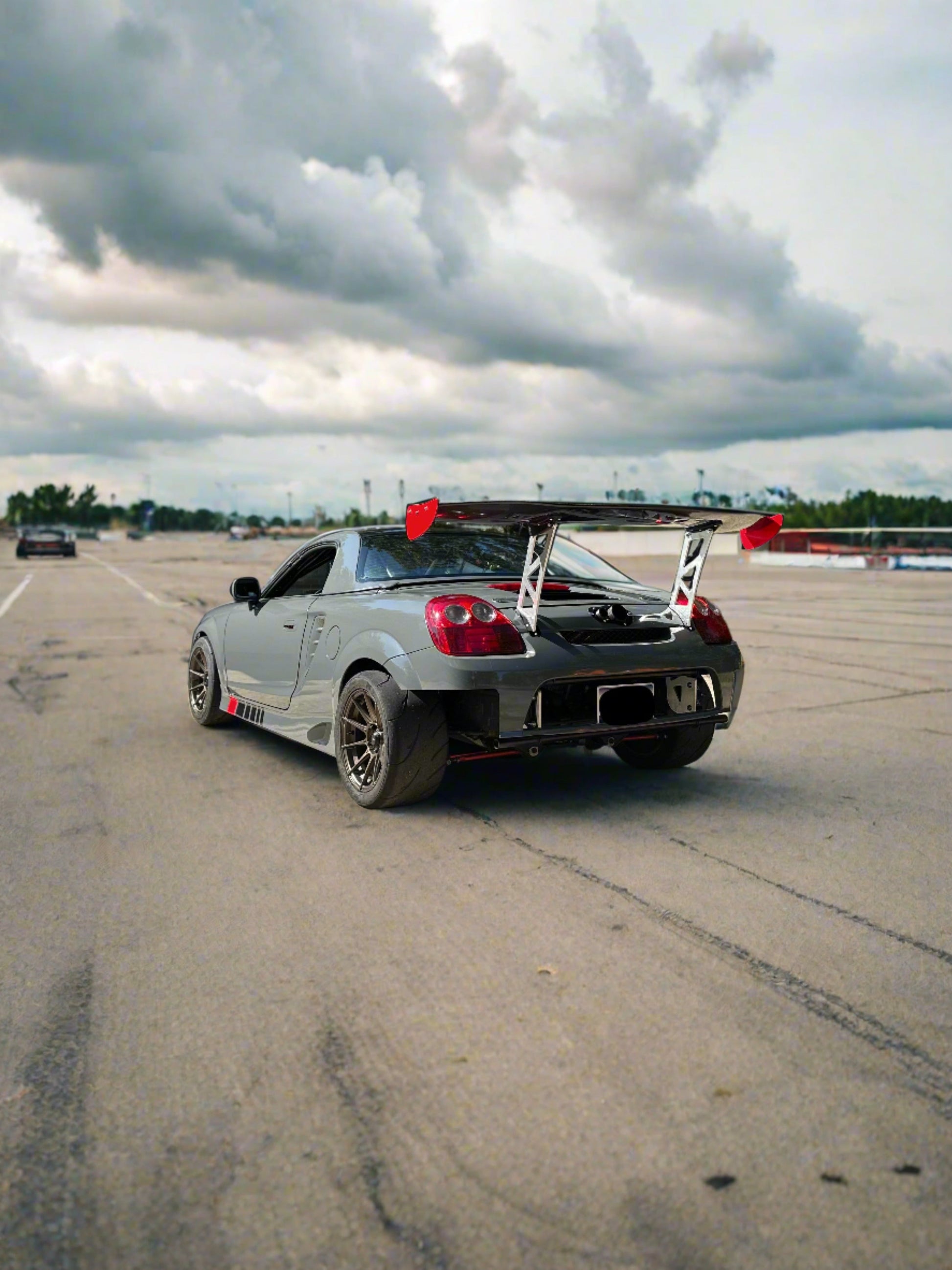

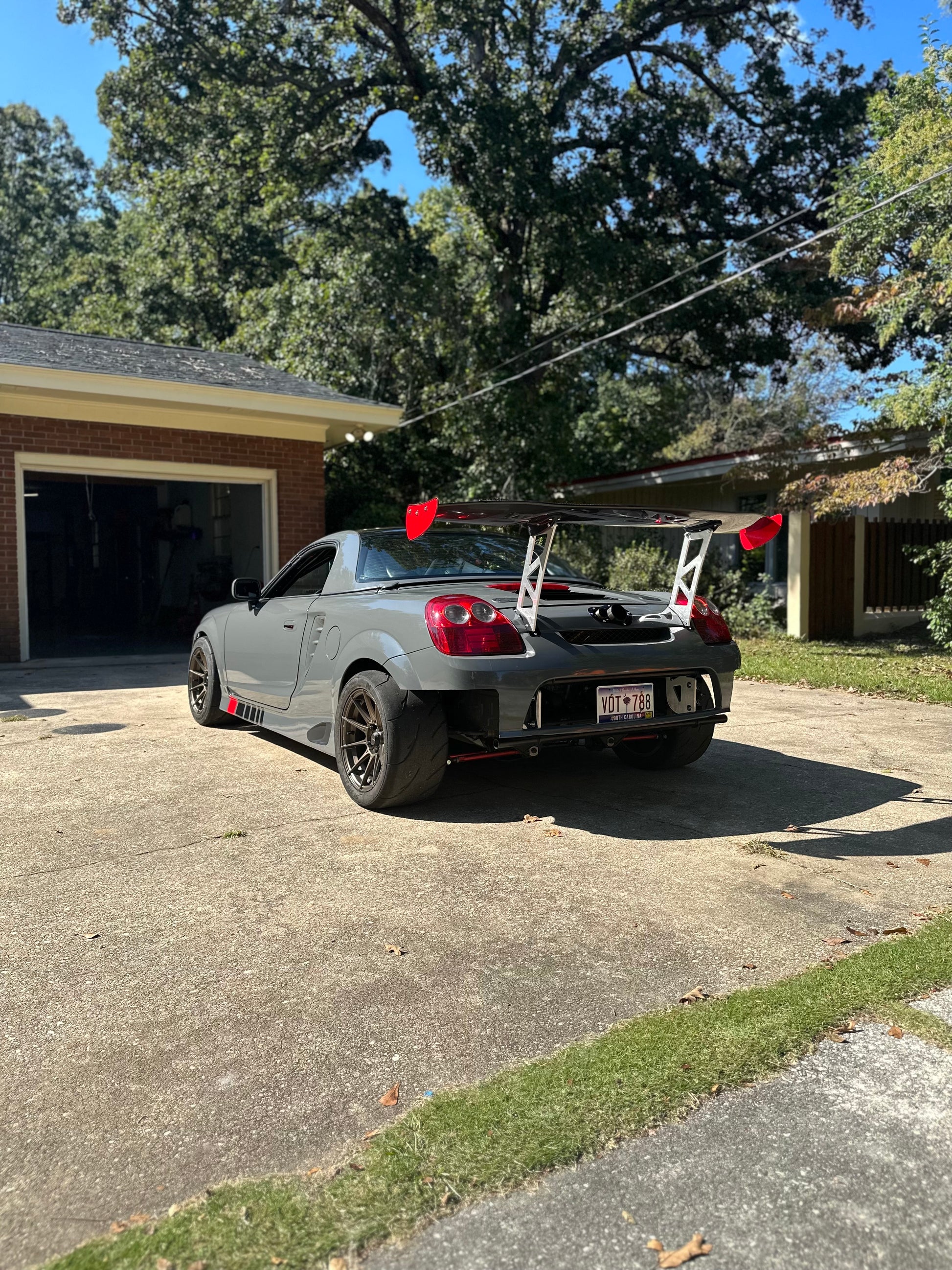

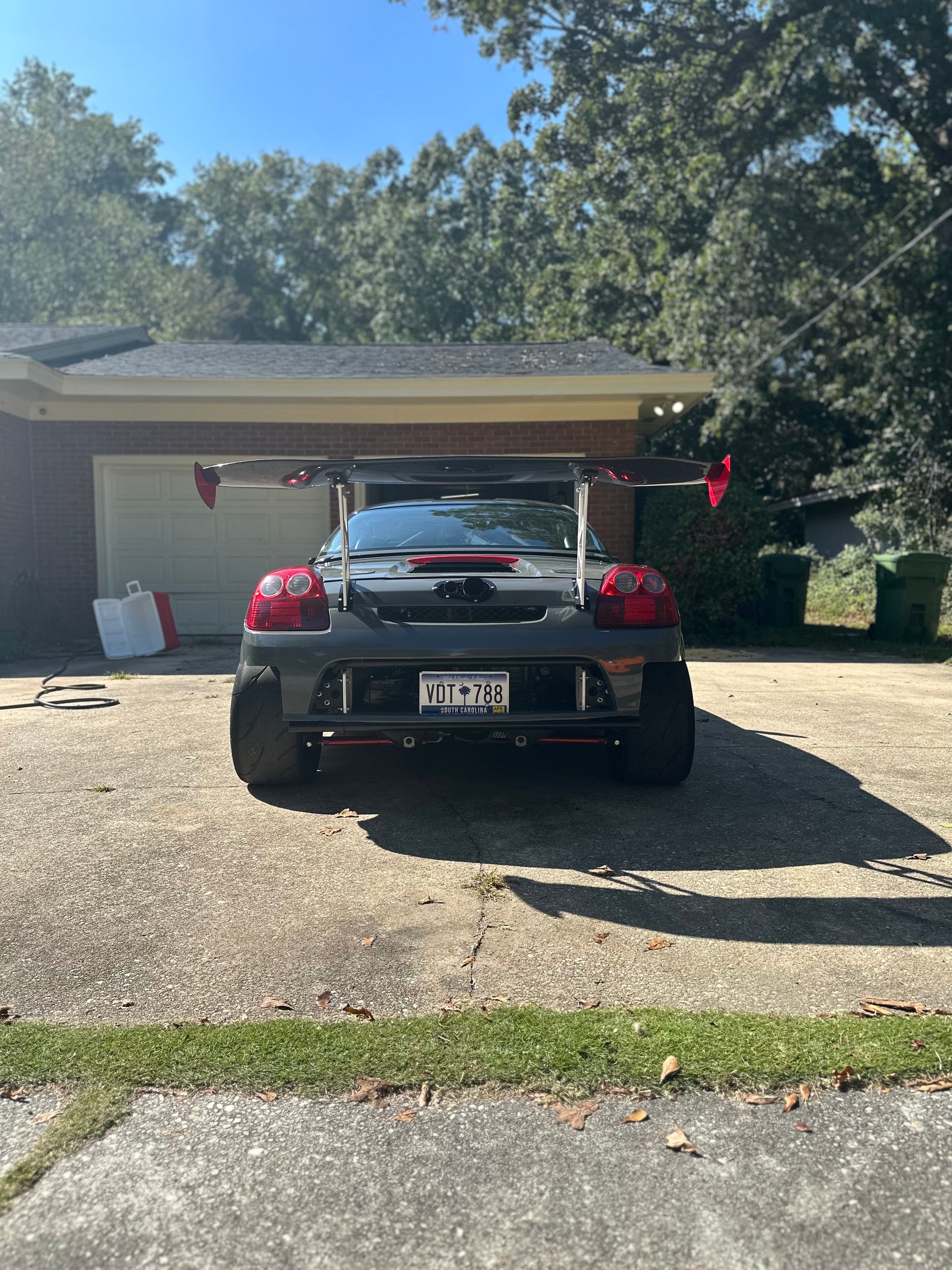

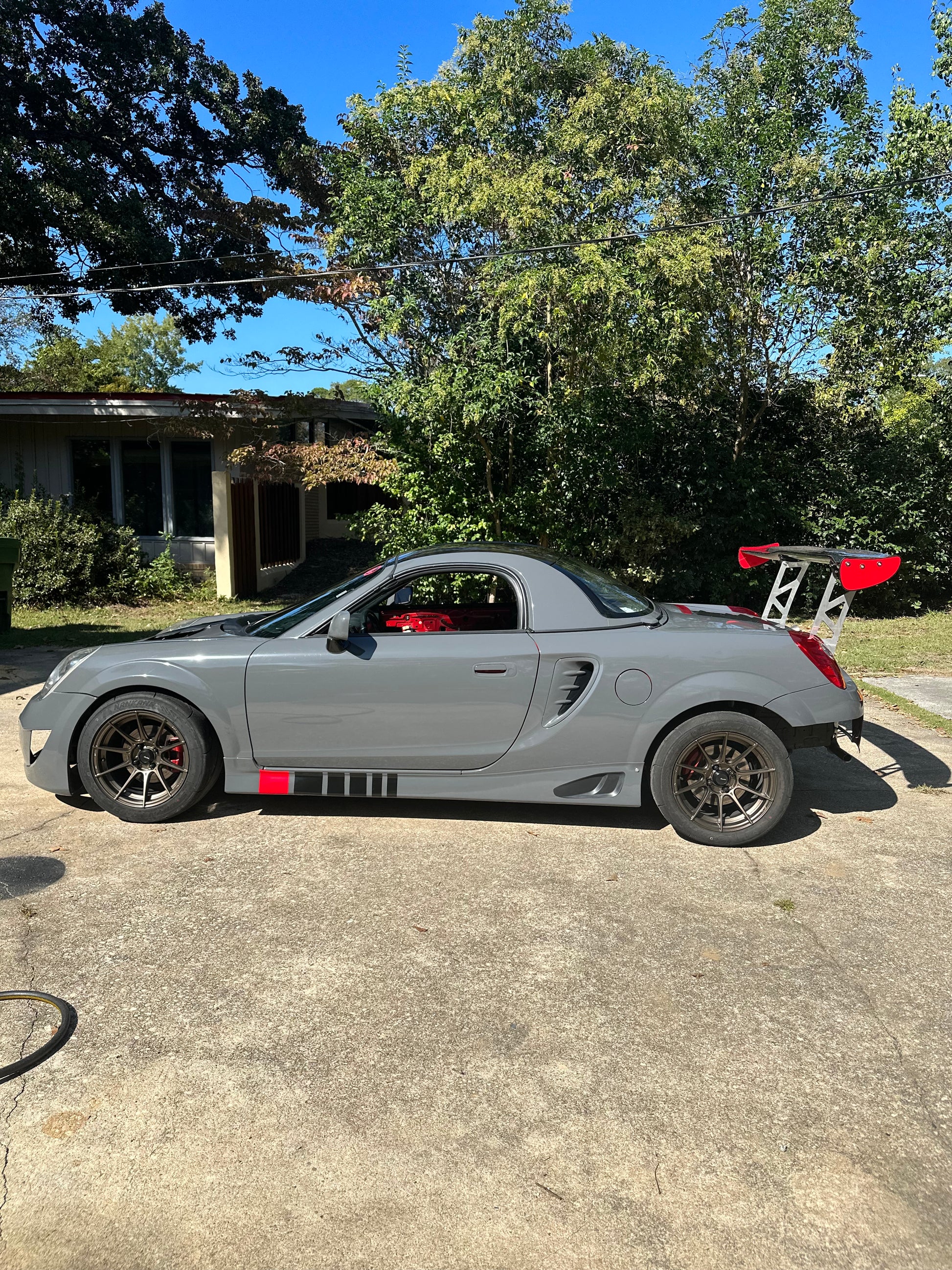

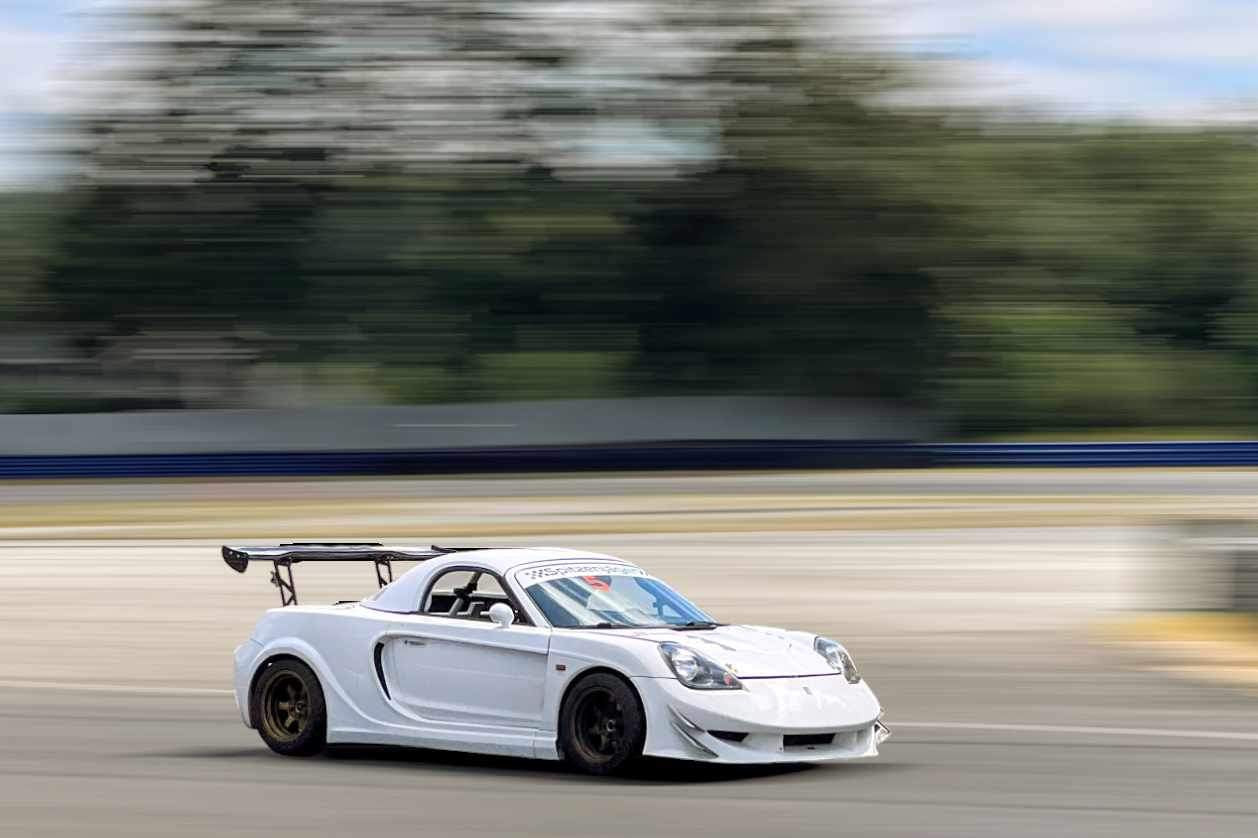

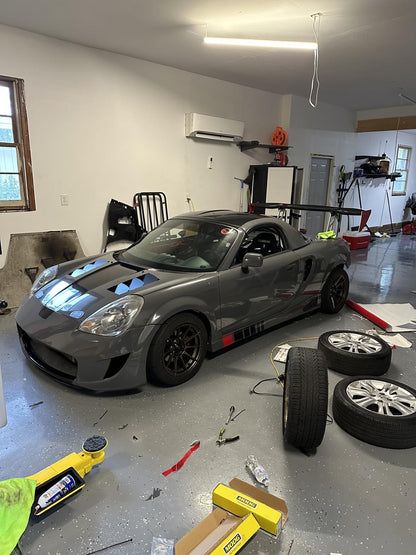

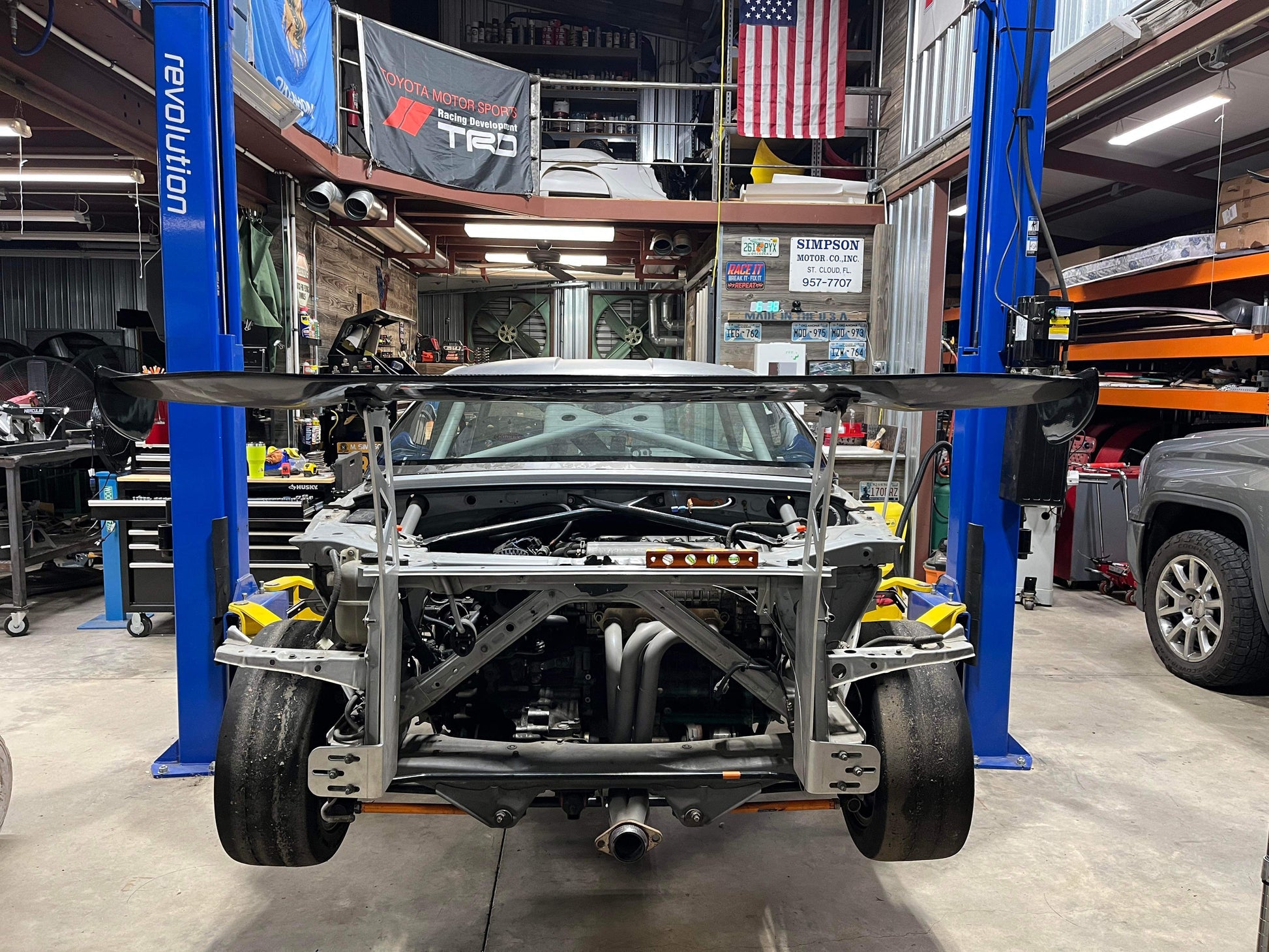

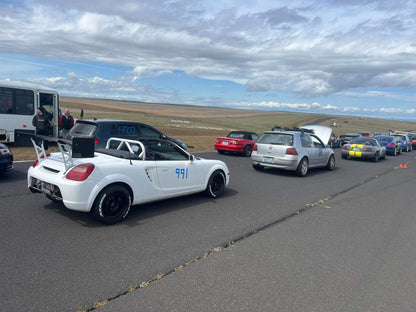

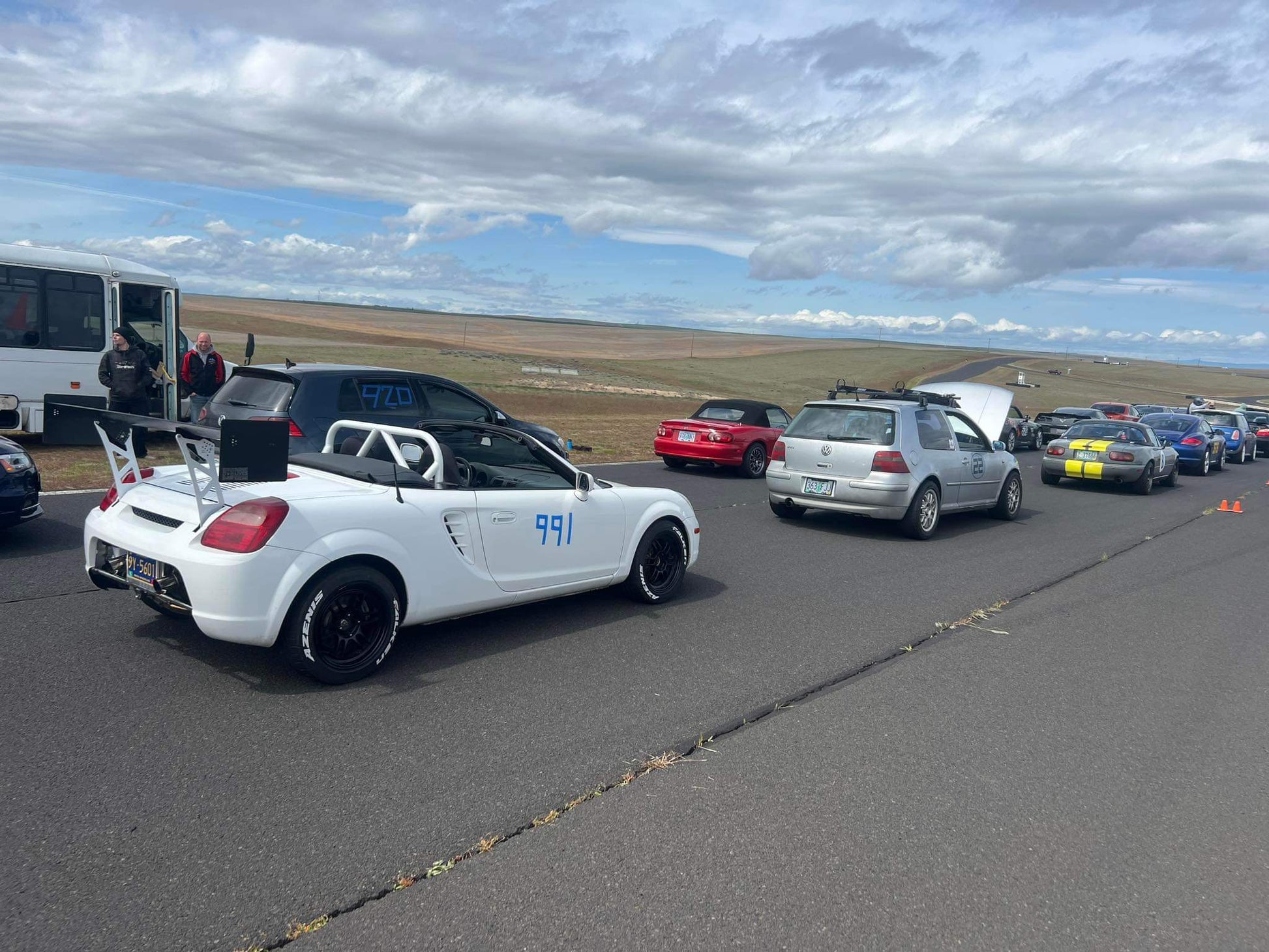

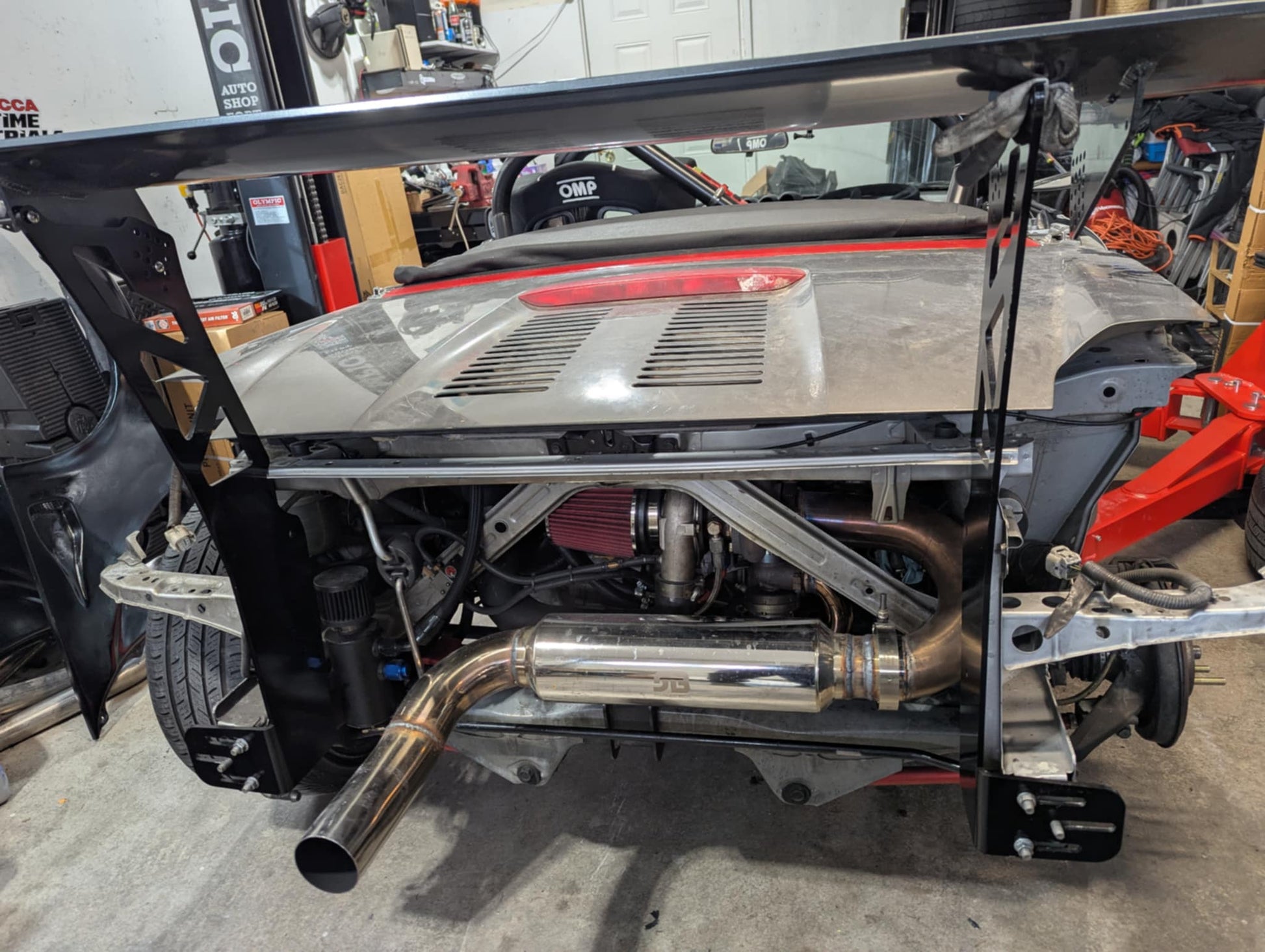

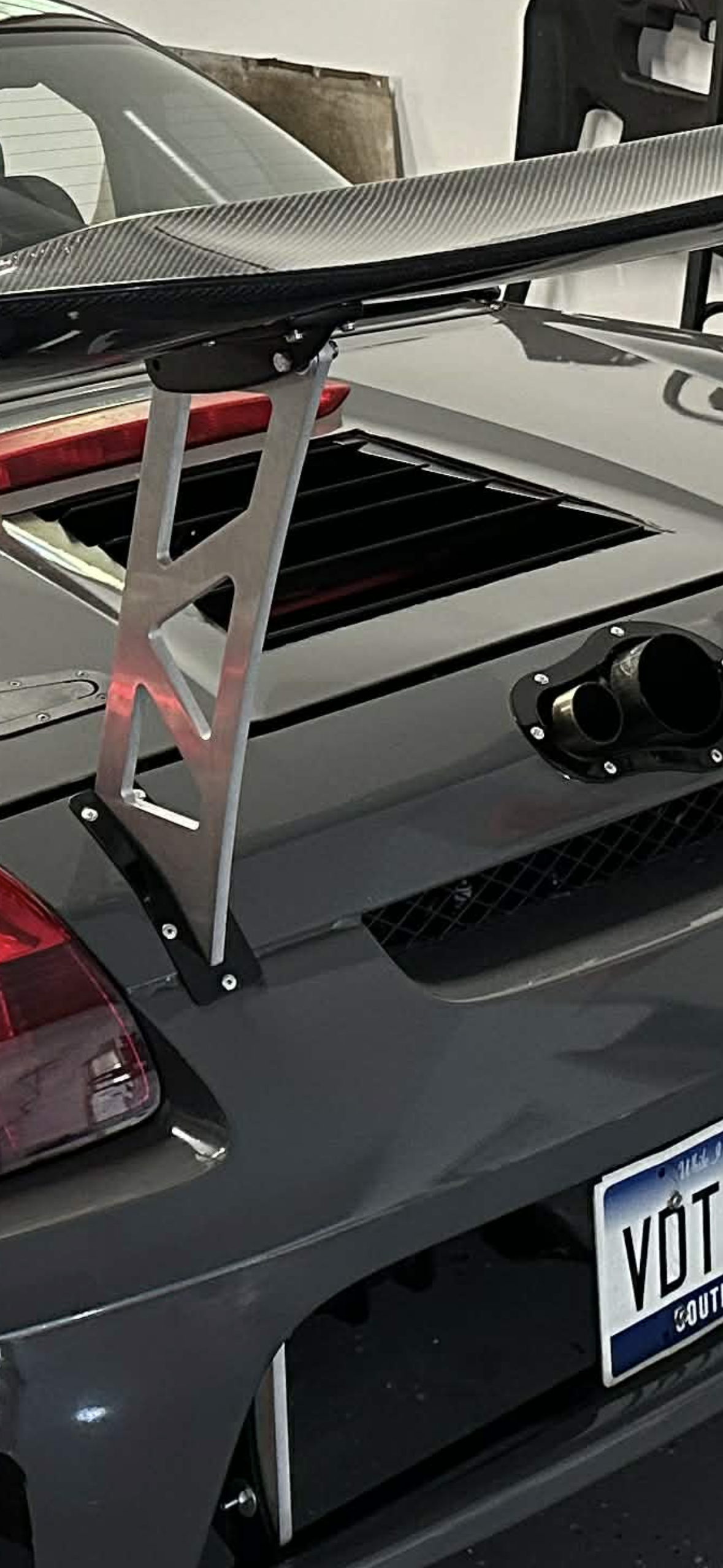

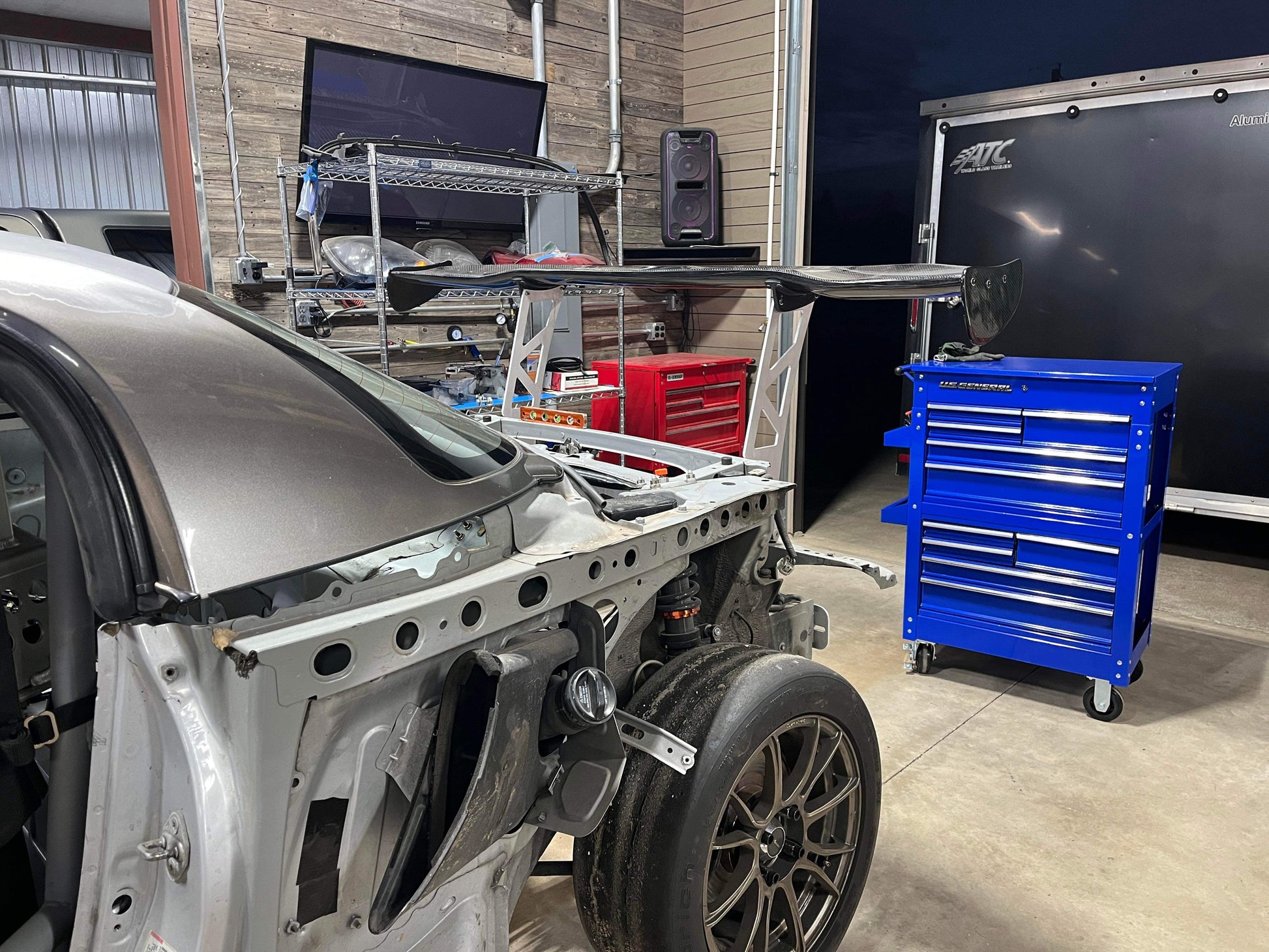

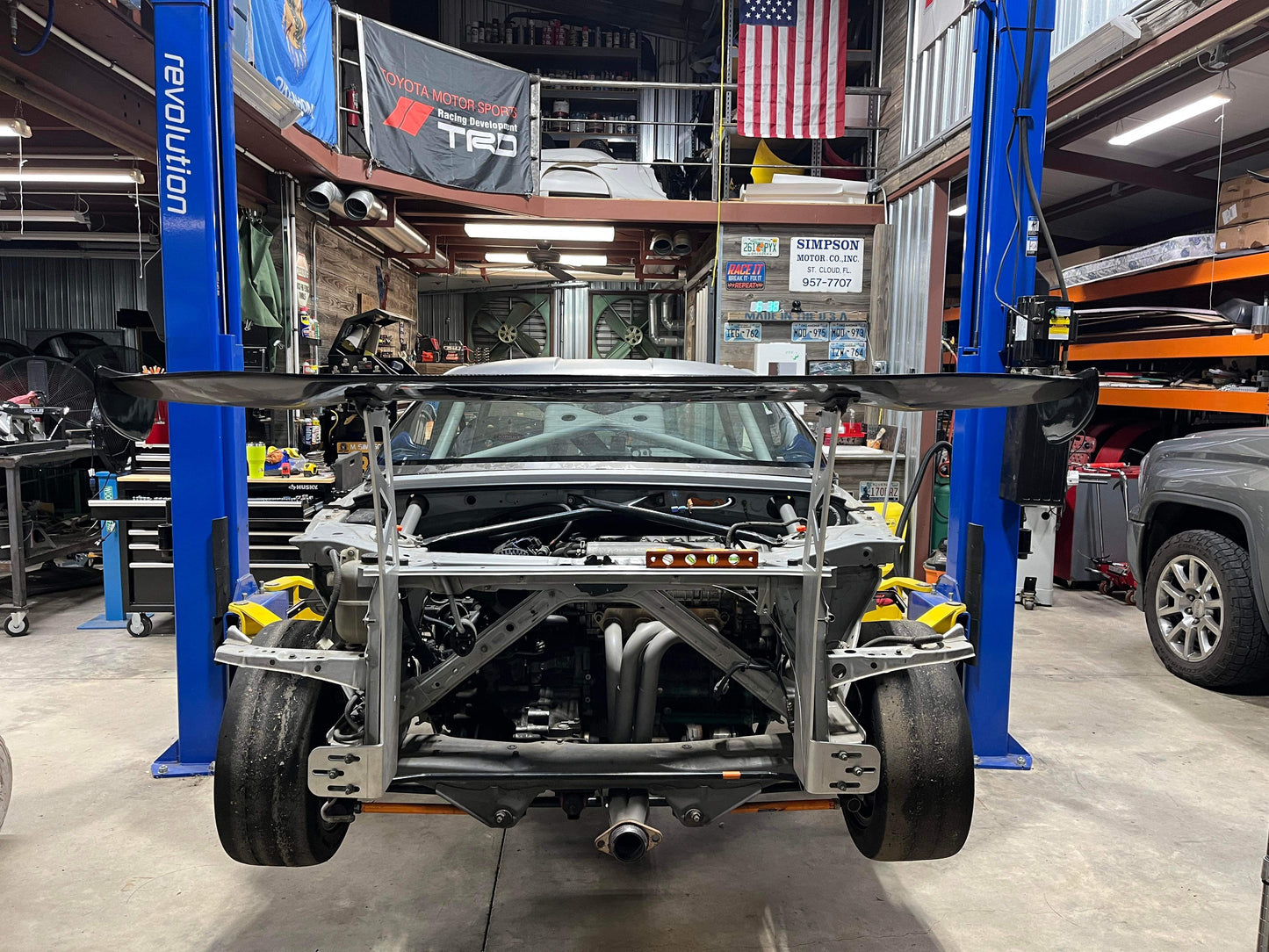

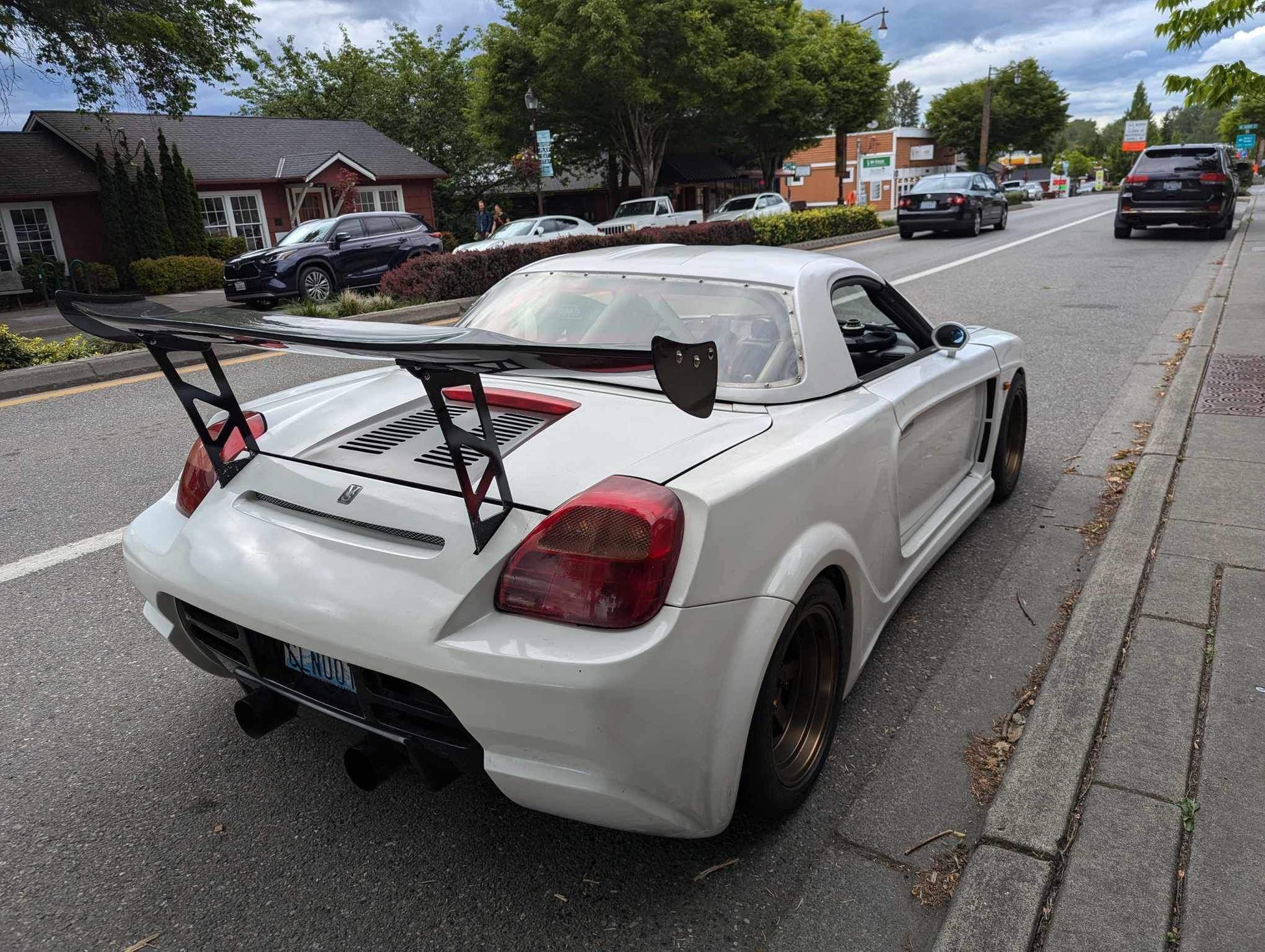

The Loofah Racing Uprights are the ONLY uprights that are chassis mounted and allow an OEM bumper without any interference! These also work with most aftermarket bumper bars on the market! We added slots for some adjustability with wing choices, you just need to provide an adapter for your choice of wing. This will directly bolt to a 69" NRG Wing or 9-Lives Wing! The wing will sit almost flush with the top of the hardtop for the most ideal placement on the MR2 Spyder!
Multiple Designs are available and for a custom option please reach out before purchase for a quote at Store@LoofahRacing.com.

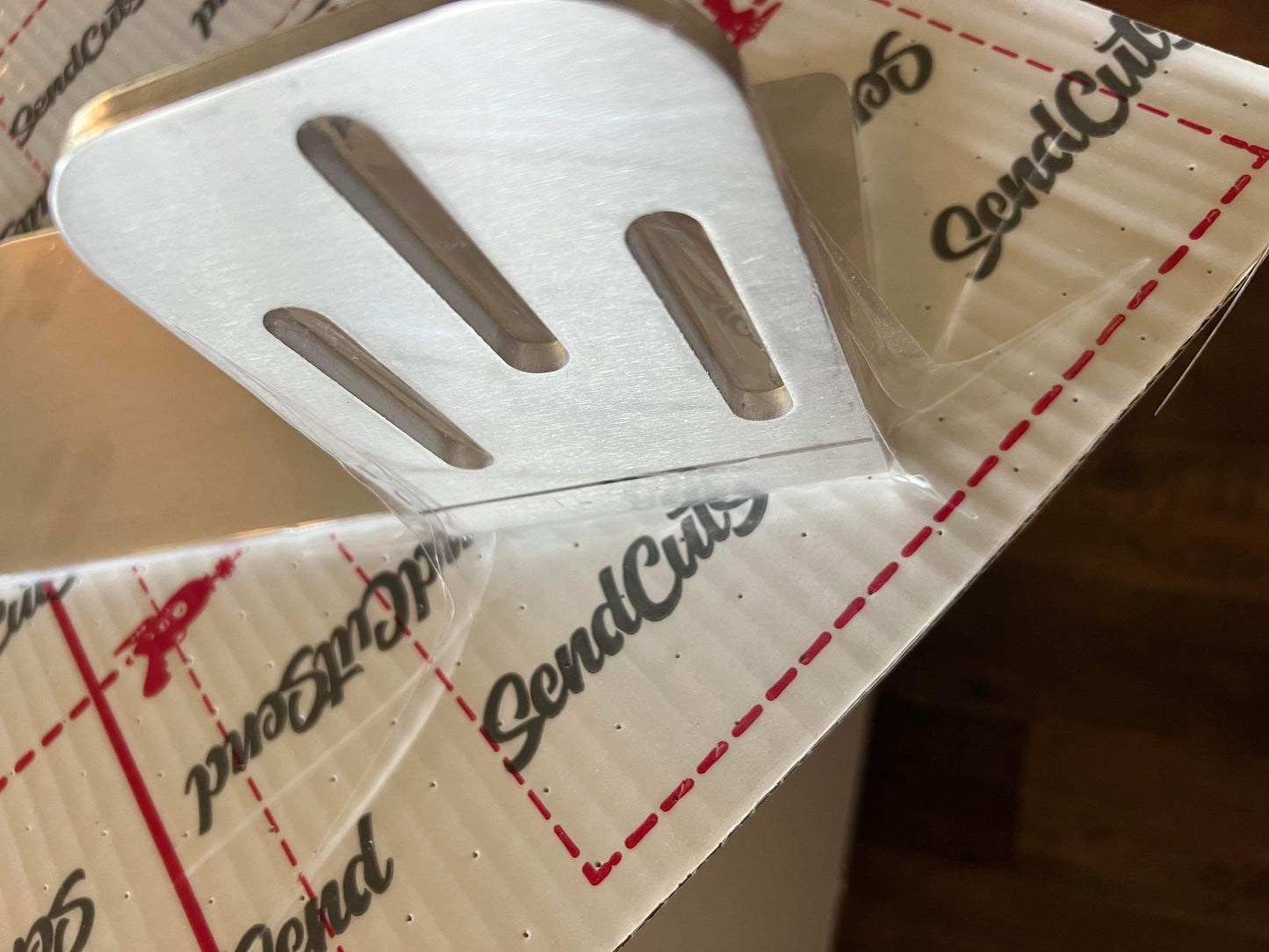

"Is honestly some of the best packaged items I have ever received"
-Customer
Requirements:

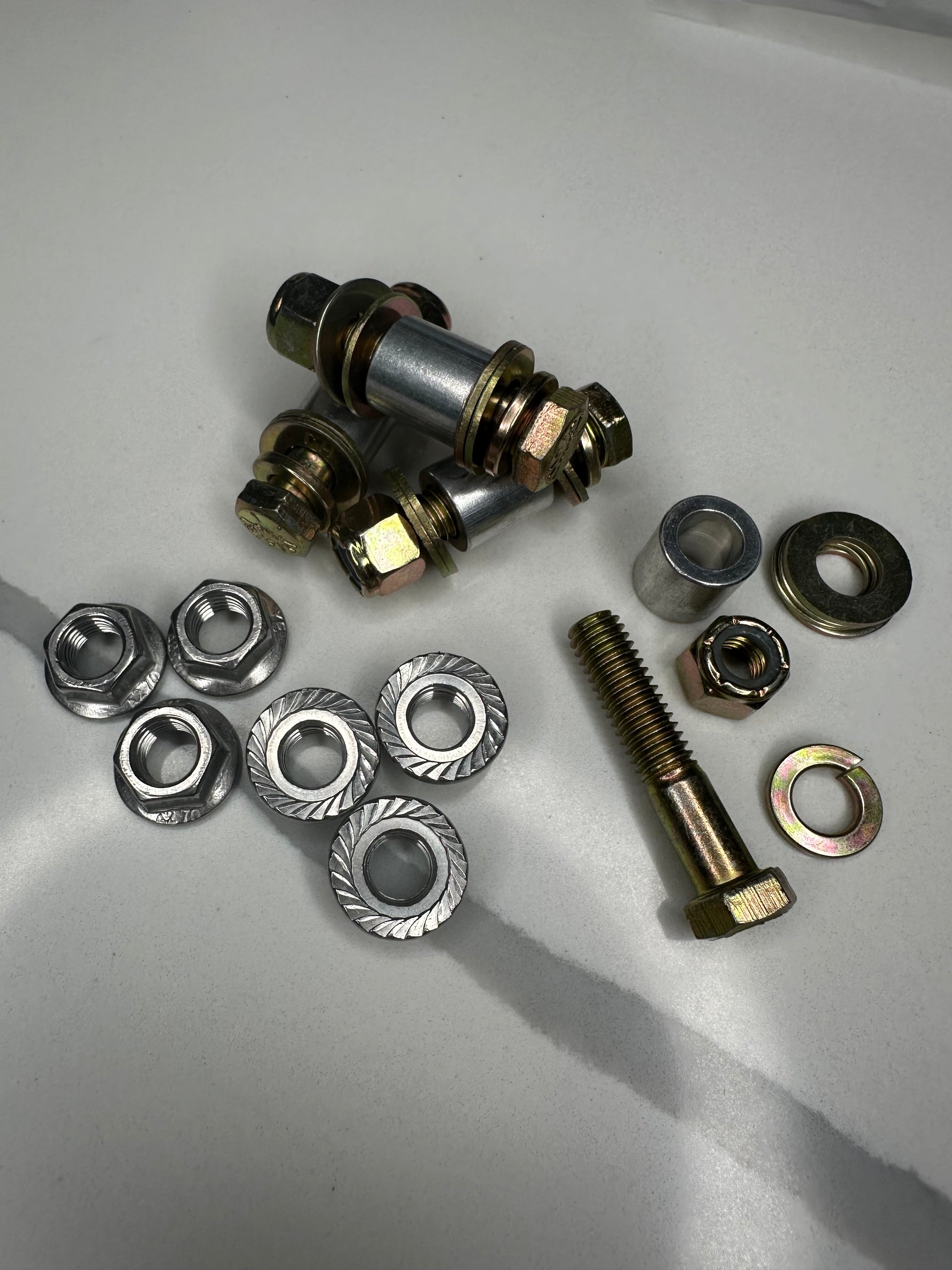

Grade 8 Hardware is needed for all bolts/nuts on this setup. Recommend 3/8" Grade 8 Hardware. We recommend using Upright Hardware Packs!

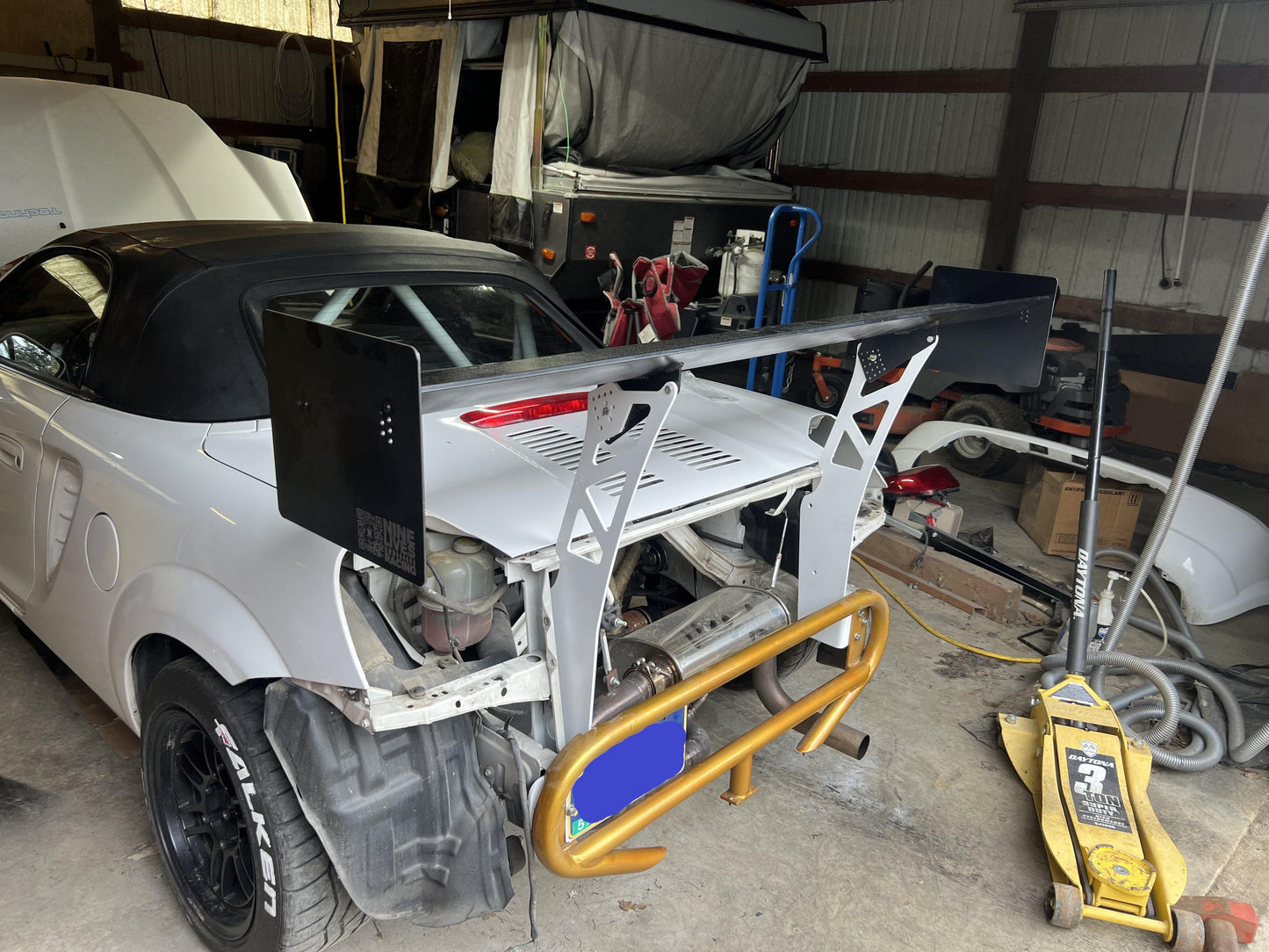

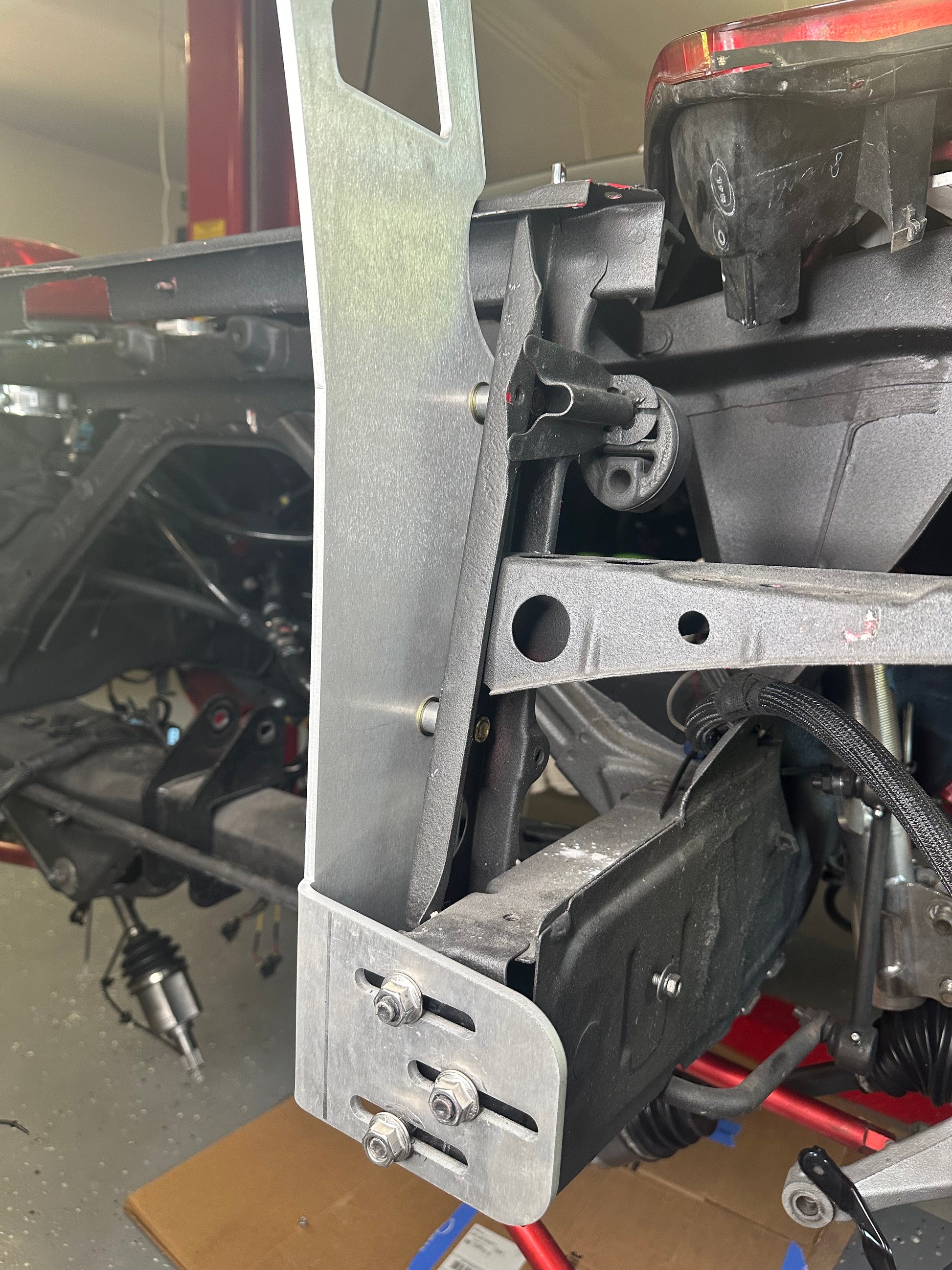

Spacers are recommended as seen in pictures
Rear Bumper slot cuts are required for the Uprights to fit with a bumper on (see picture).
May need a adapter plate for Wing to bolt to the uprights if not using a 69" NRG wing or 9-Lives Wing
Technical Information:
Wing Bracket range of 31.5" to 34" without brackets or spacers
Very Light 1/4" 5052 aluminum
4.86" distance between wing mount holes on top of uprights (NRG)
Top Wing mount hole is 0.3" Diameter
The 2 support holes for spacers are 0.43" Diameter
Slots are 2" wide by 0.397" Diameter
Features/Benefits

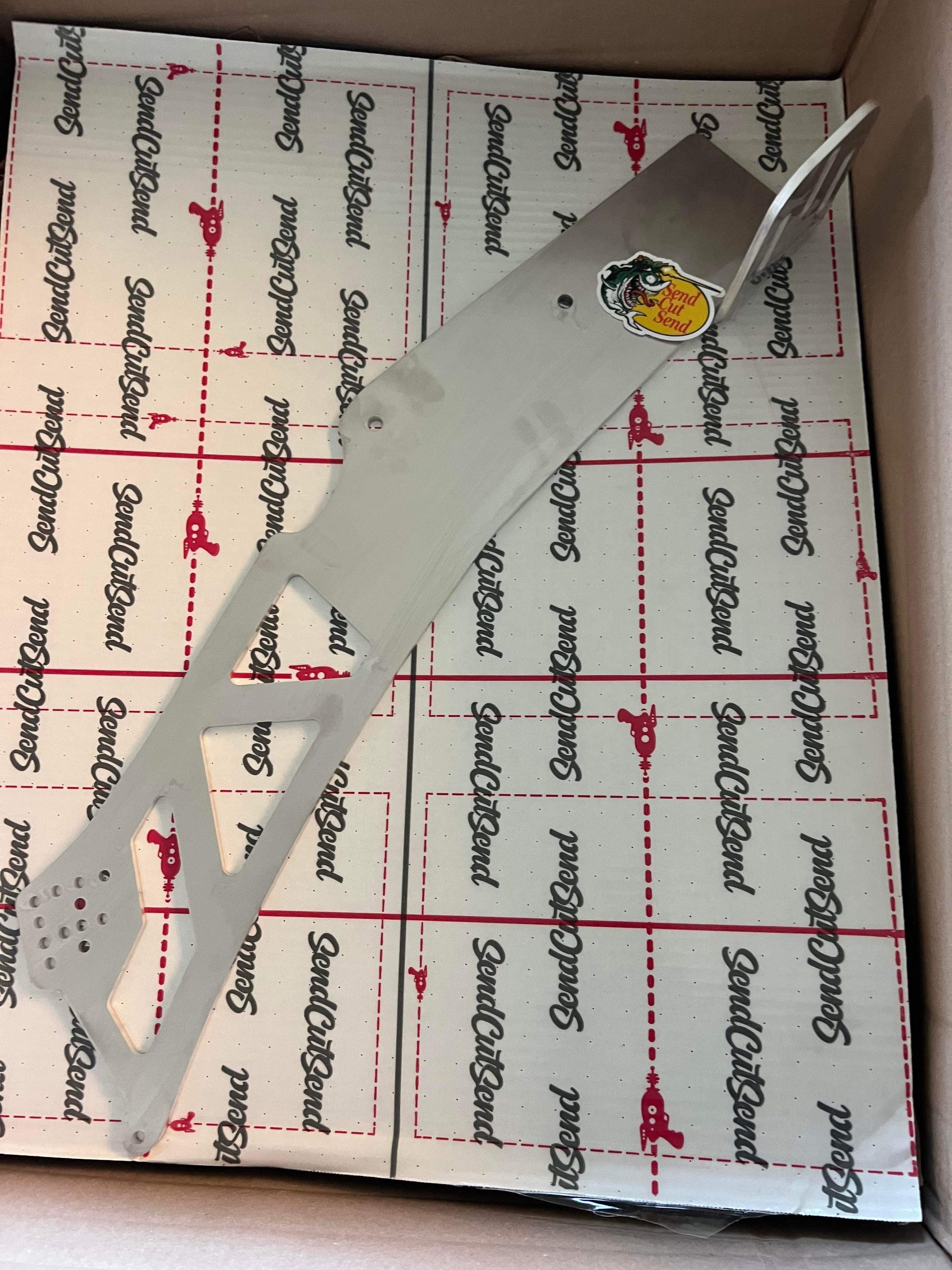

Quality 5052 1/4" Laser Cut Aluminum
Bent by machine for accuracy and precision

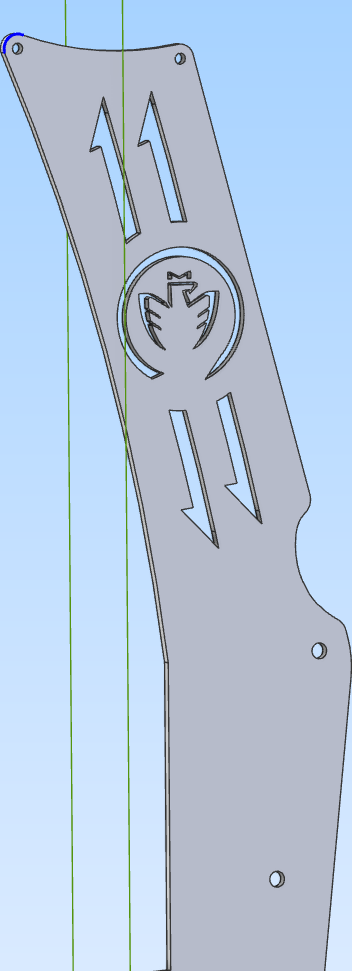

Multiple Design options available
Adjustable Side to Side motion for different wing mount points
Easy to Install
Chassis Mounted for Strength
Adjustable
Increased Downforce from Larger Wings (NRG or 9-Lives)
Can be mounted with OEM Rear Bumper Bar (saving Money)
