Description

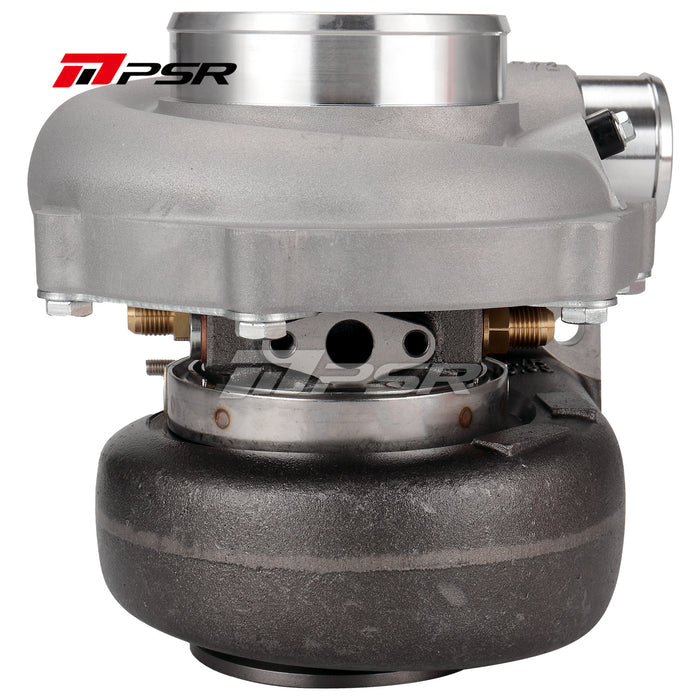

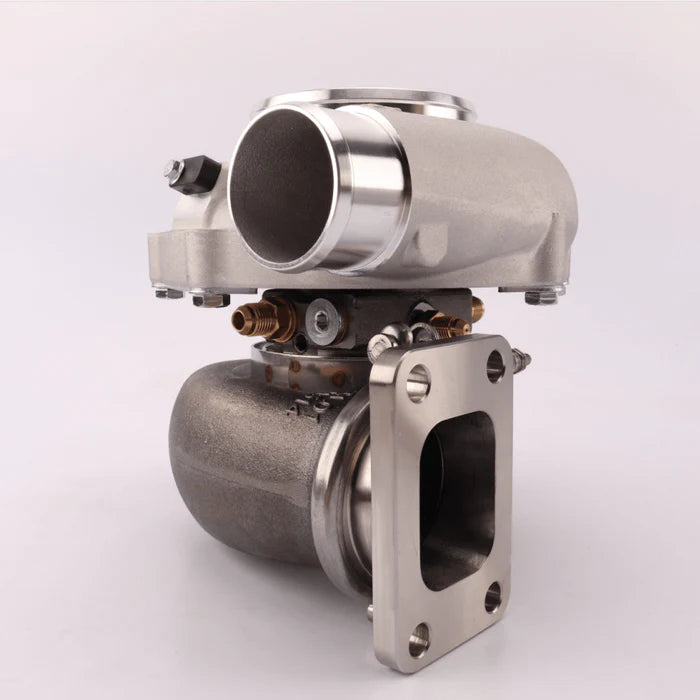

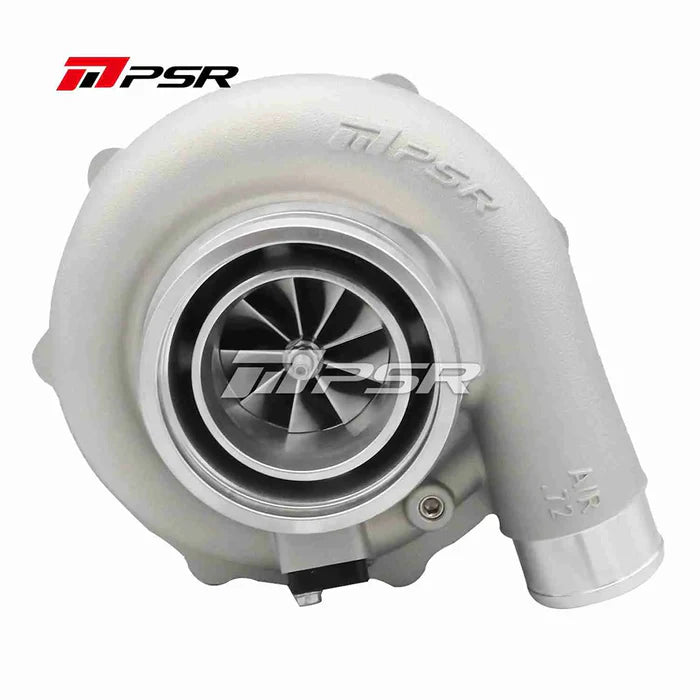

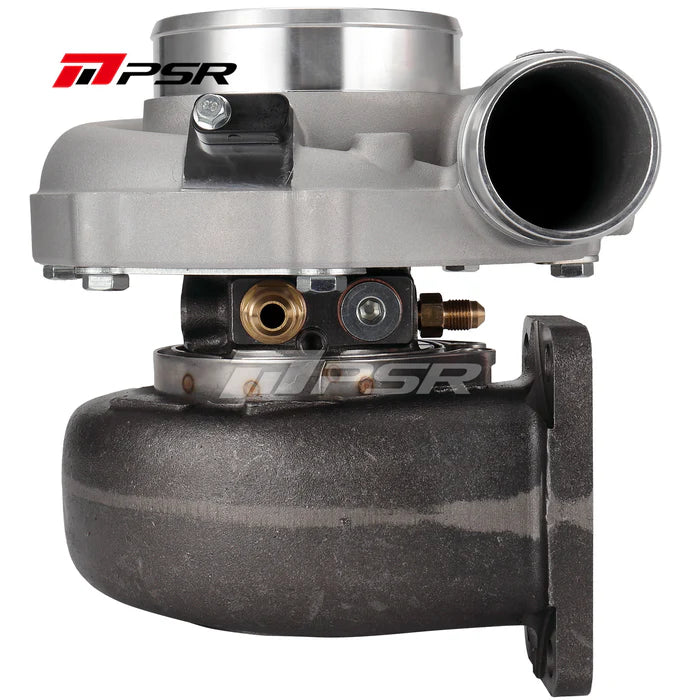

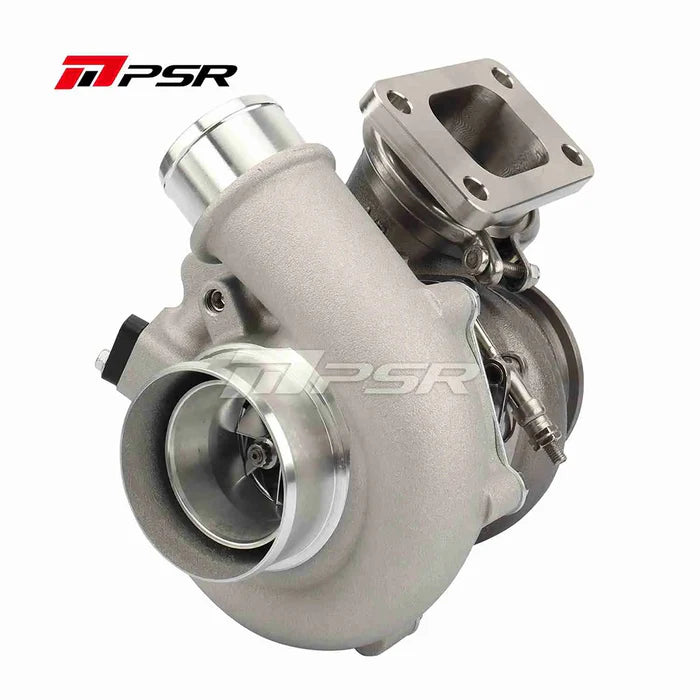

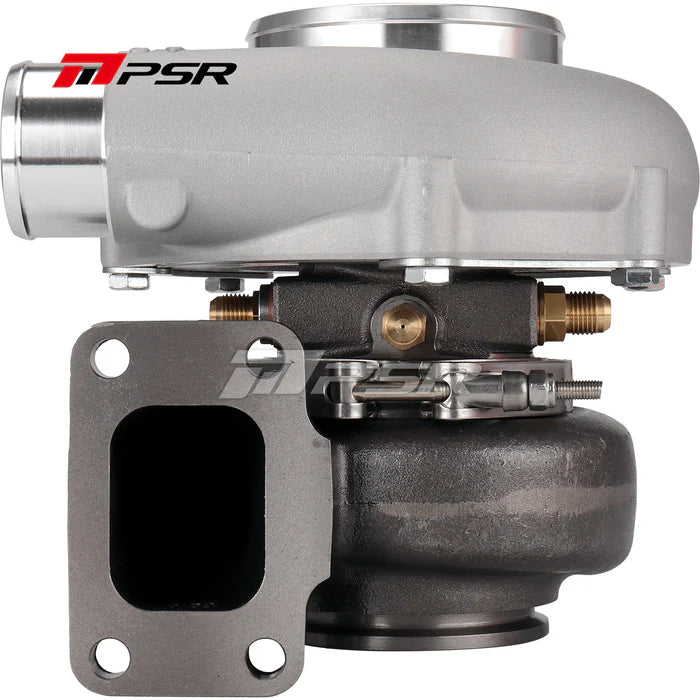

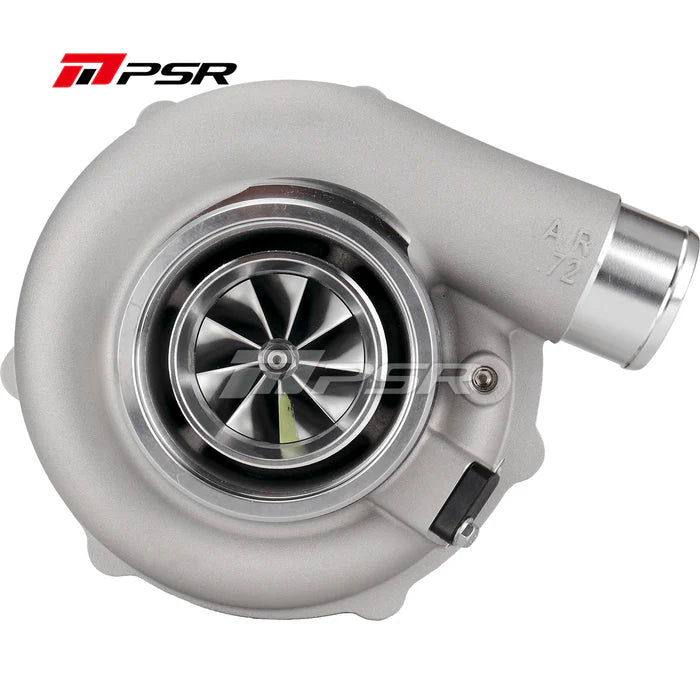

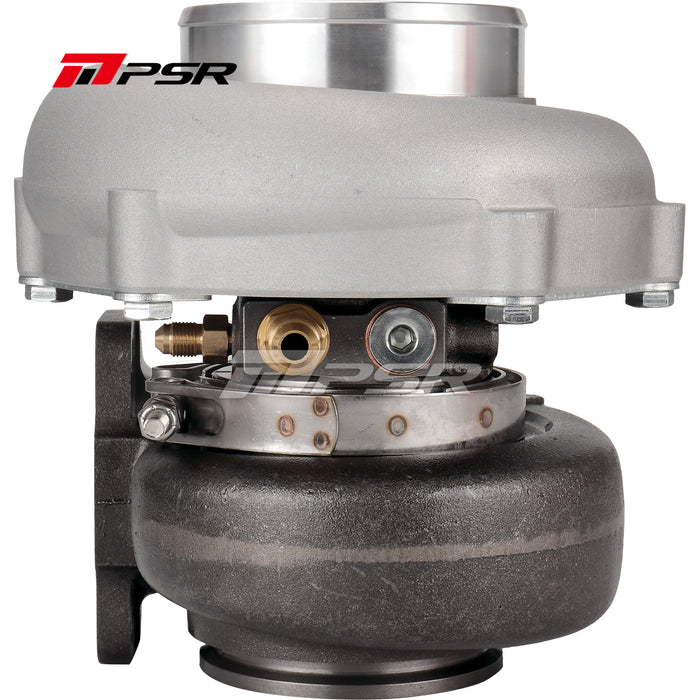

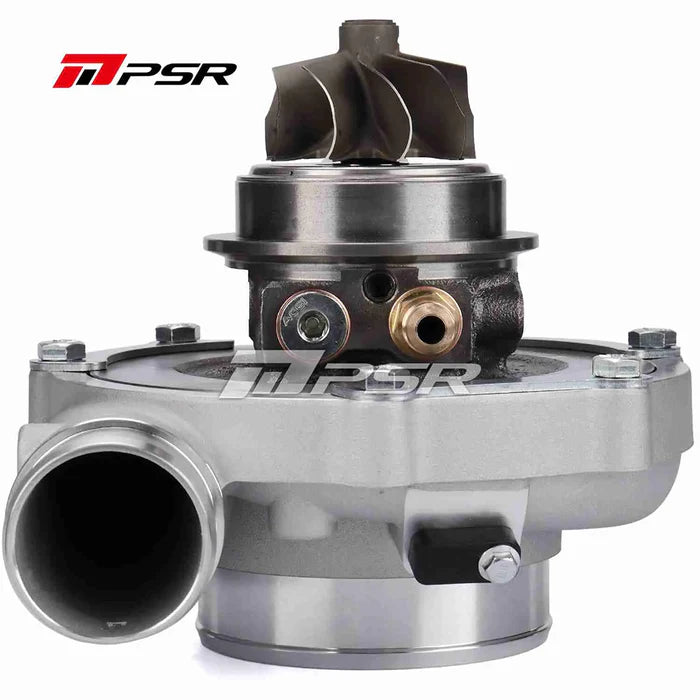

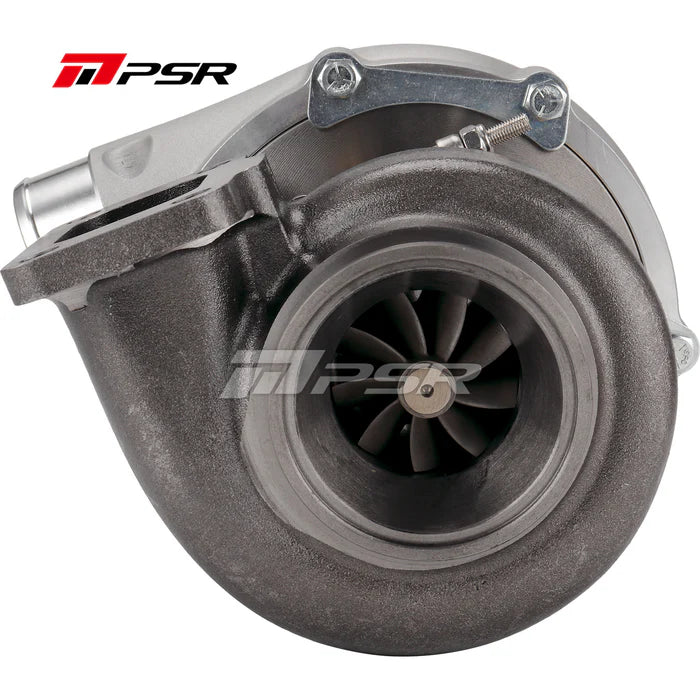

The Dual Ceramic ball bearing system of the PSR 6255G (G30-900) turbocharger maximizes response time and durability by minimizing shaft motion. Equipped with a 9 Blade G-Aero Billet Compressor Wheel featuring Extended Tapered Tip Technology, this turbocharger also boasts a 9 Blade G-Aero Inconel 713c Turbine Wheel and an Anti-Surge ported-shroud compressor inlet. The cover is integrated with a speed sensor port, and the turbocharger is internally wastegated and features a Billet Actuator with a working pressure of 12 psi. Rated at 900hp at the flywheel!
Delivery Time: 2 Weeks

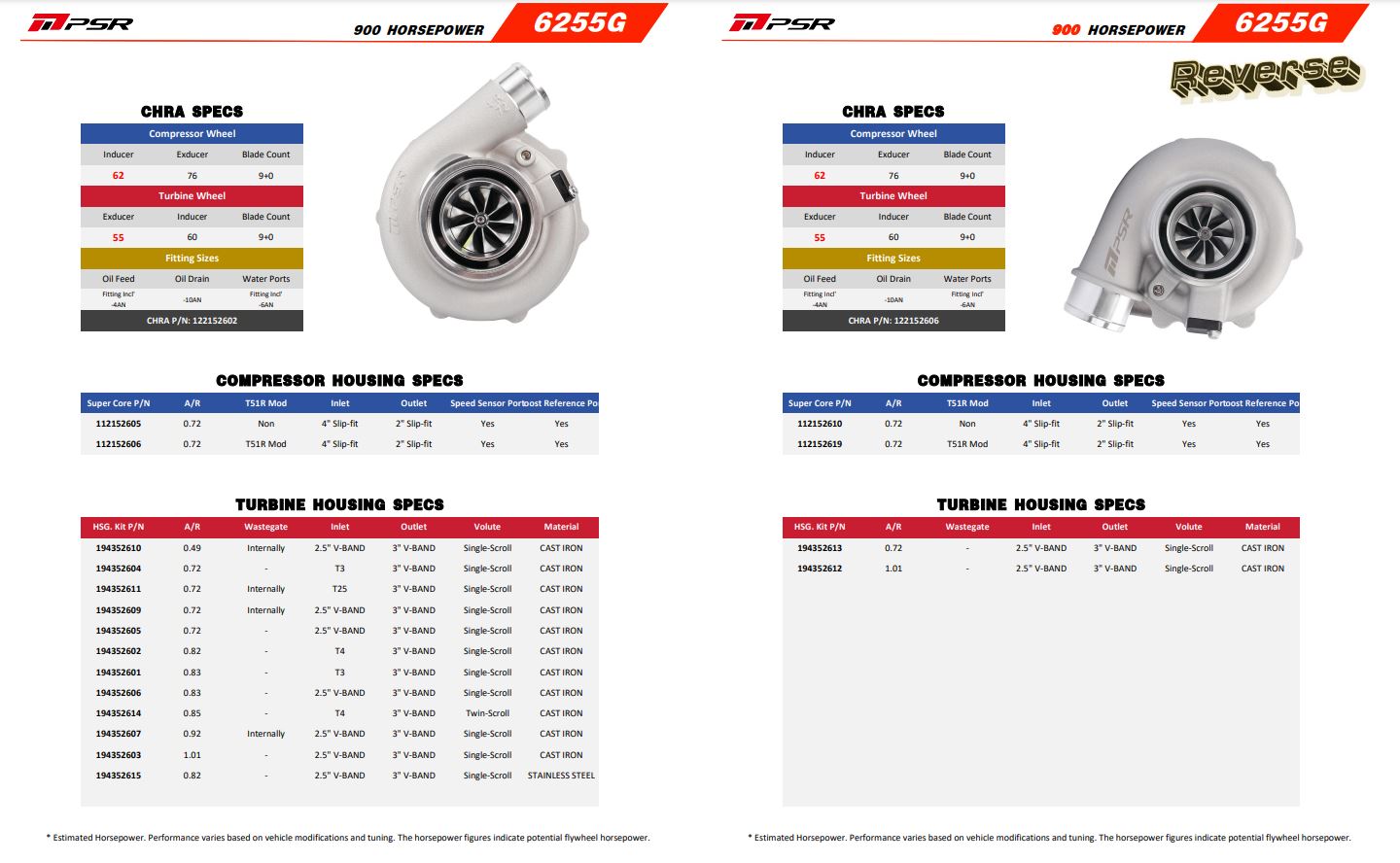

Features/Benefits
- Compressor Wheel: 62*76mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 4″ Hose

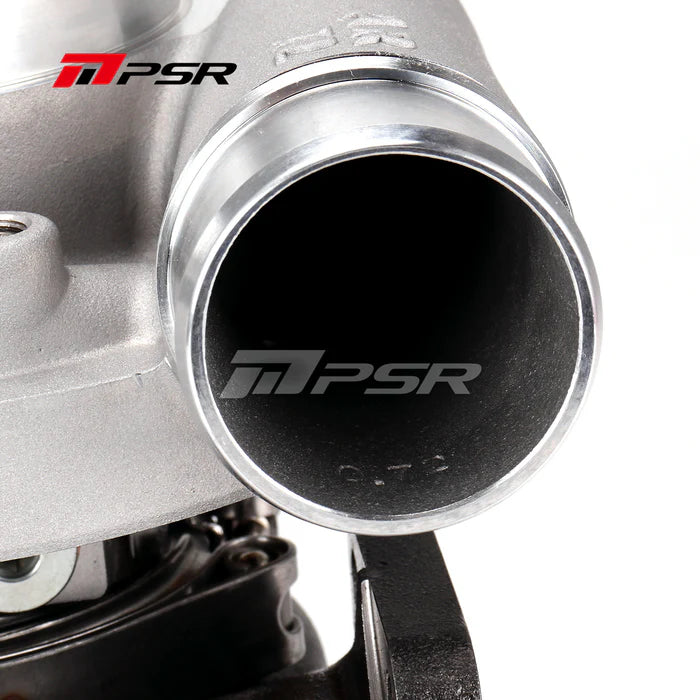

- Compressor Outlet: 2″ Hose

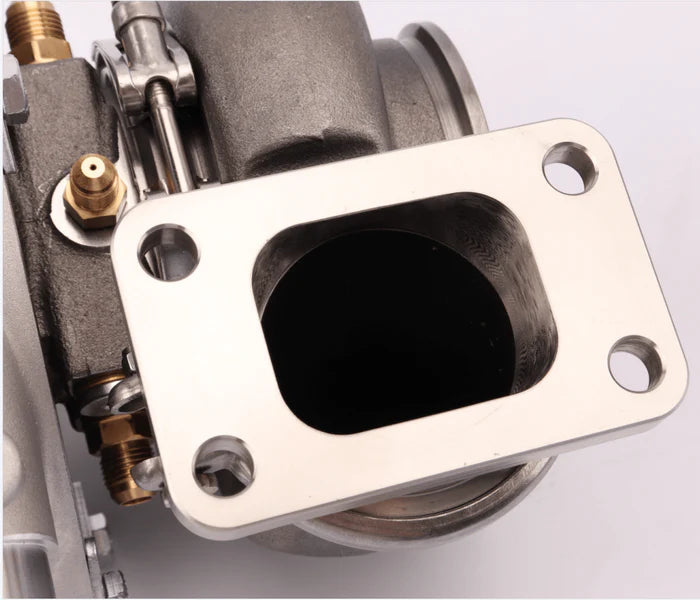

- Turbine Inlet: T25, T3, T4 or Vband

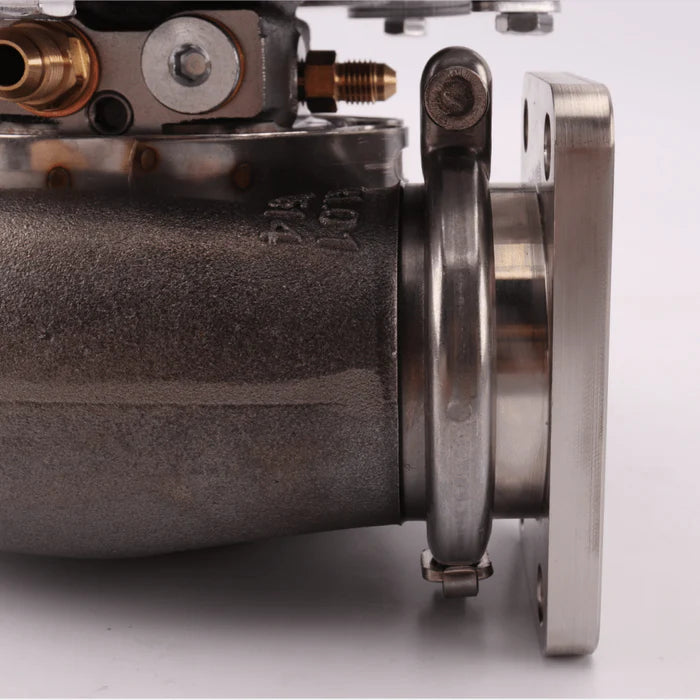

- Turbine Outlet: 3″ V-Band
- Water Ports: 2-M14 X 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
- Oil Outlet: Std T3 Oil Drain Flange
- Rated at 550-900HP at the flywheel
- Suitable Engine Size: 2.0-3.5L
Applications
- Universal
What's In The Box?

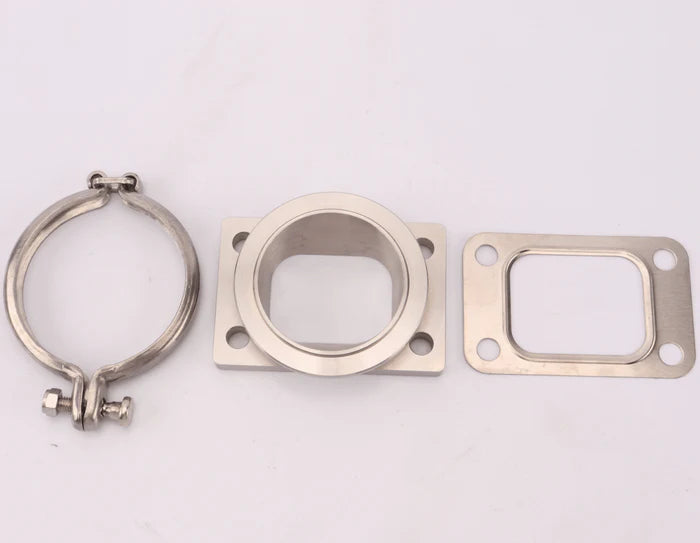

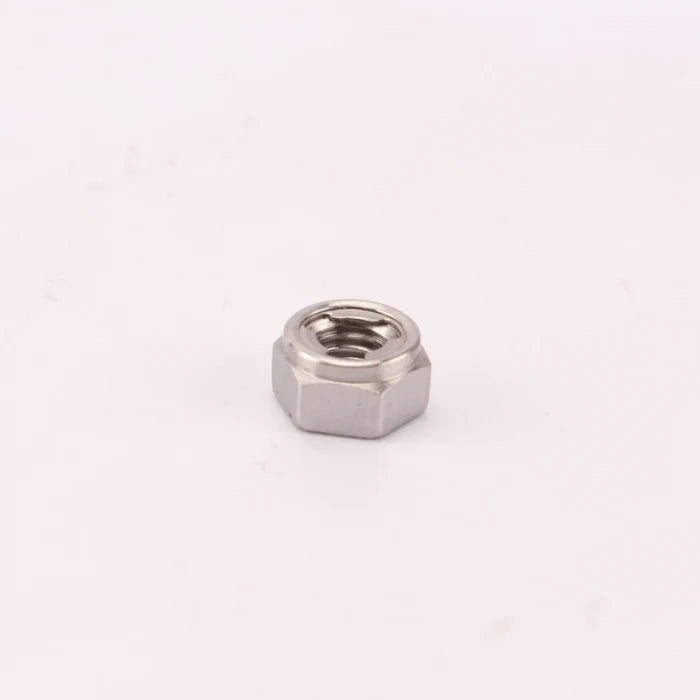

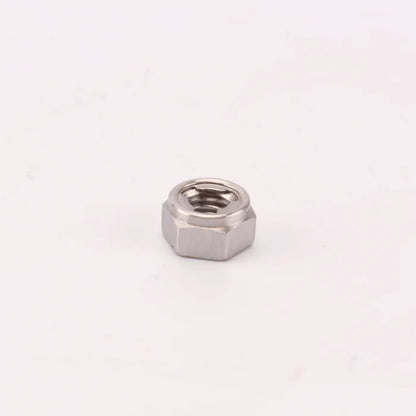

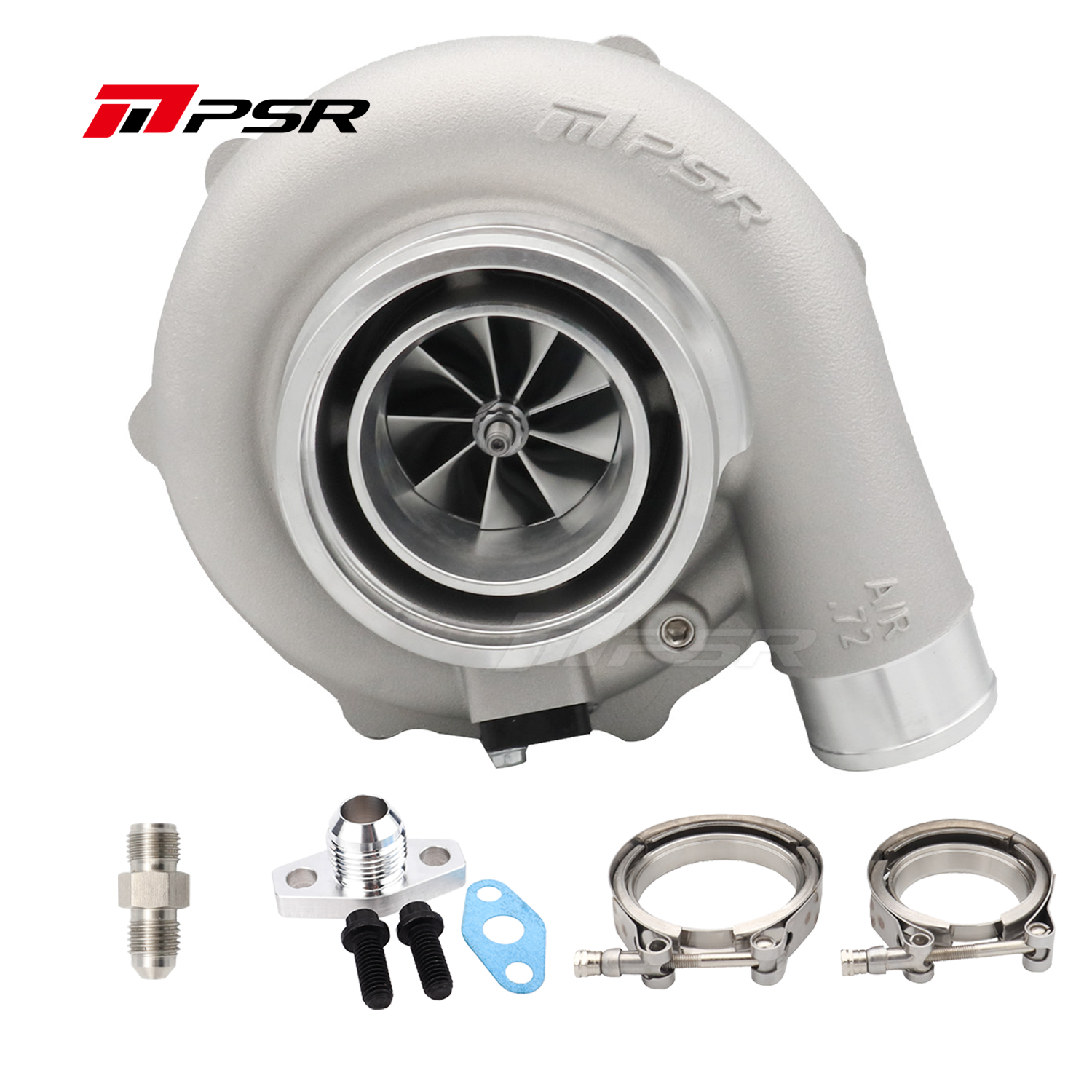

- 1 - PSR 6255G (G30-900) Turbo with Accessories
