Description

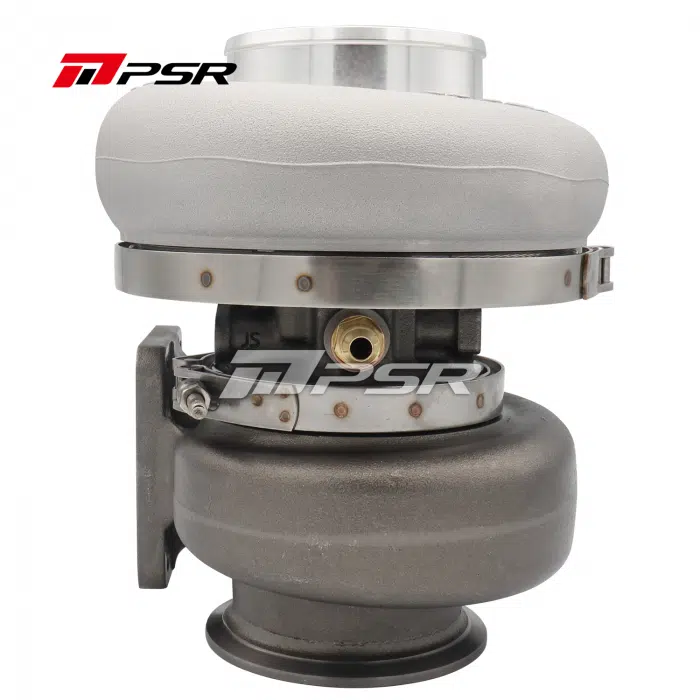

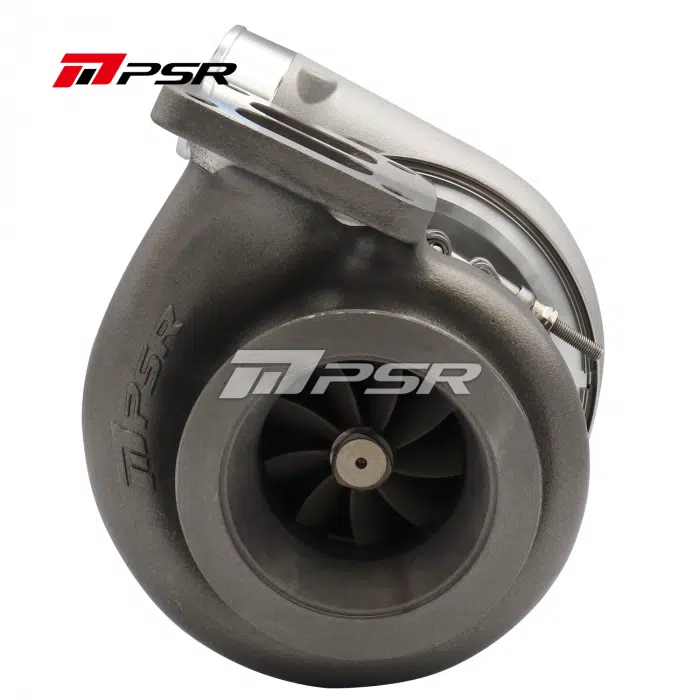

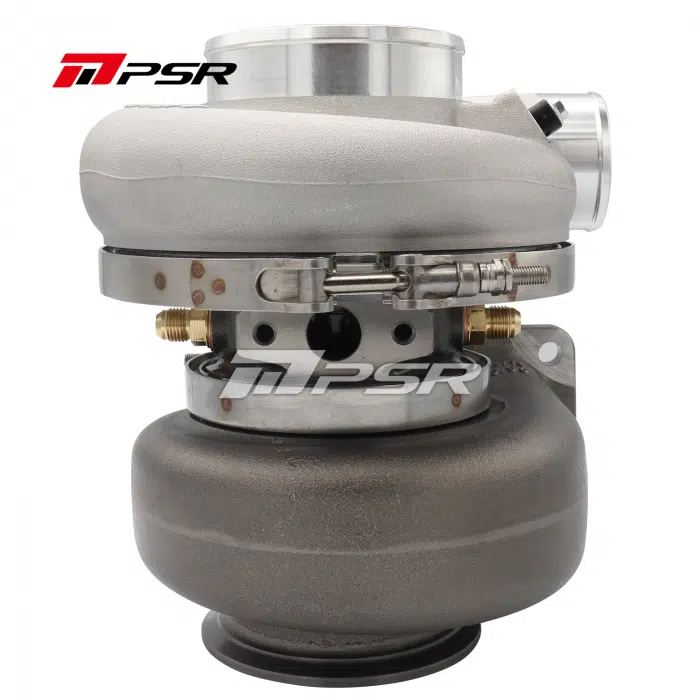

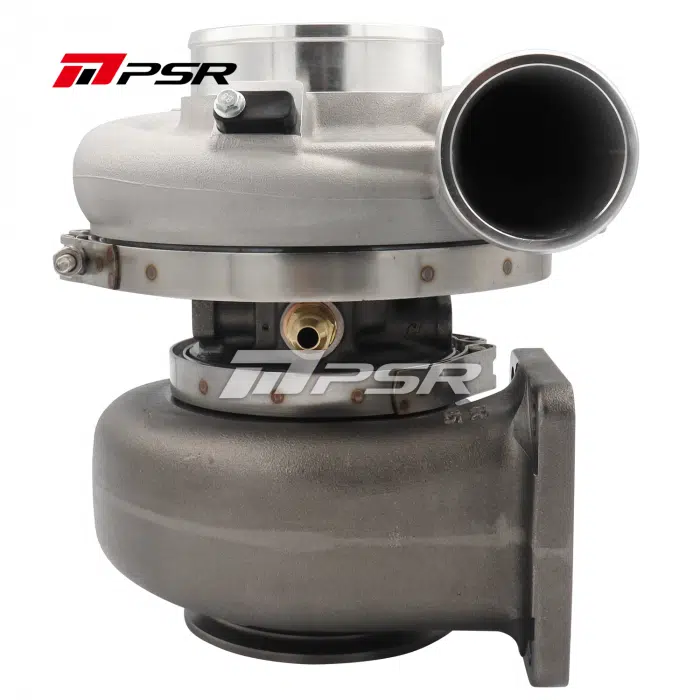

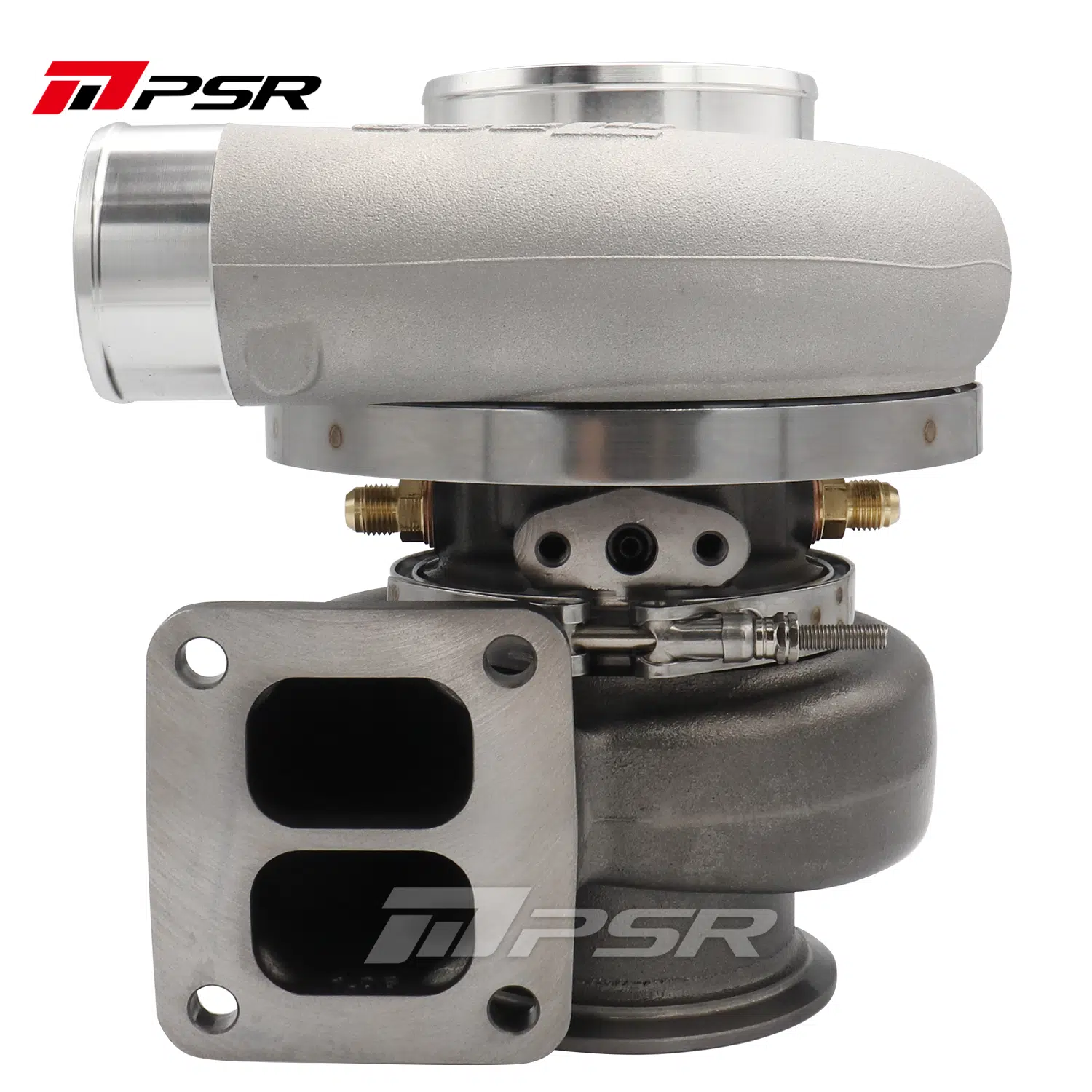

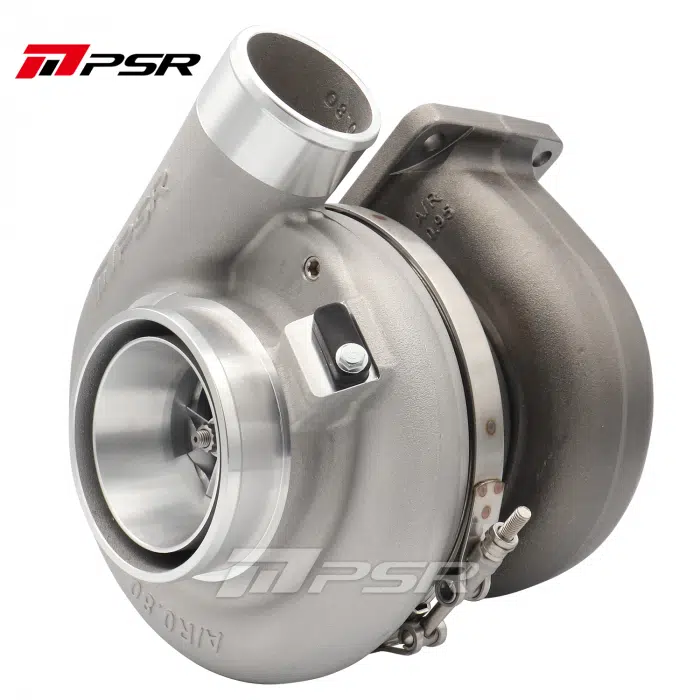

The Dual Ceramic ball bearing system of the PSR 6270G (G40-900) turbocharger maximizes response time and durability by minimizing shaft motion. Equipped with a 9 Blade G-Aero Billet Compressor Wheel featuring Extended Tapered Tip Technology, this turbocharger also boasts a 9 Blade G-Aero Inconel 713c Turbine Wheel and an Anti-Surge ported-shroud compressor inlet. The cover is integrated with a speed sensor port, and the turbocharger is internally wastegated and features a Billet Actuator with a working pressure of 12 psi. Rated at 900hp at the flywheel!
Delivery Time: 2 Weeks
Features/Benefits
- Compressor Wheel: 62.7*88mm
- Turbine Wheel: 77*70mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2.5″ Hose
- Turbine Inlet: V-band or T4 divided
- Turbine Outlet: 3.5”or 4″ V-band (see details after housing selection)
- Water Ports: -6AN
- Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange )
- Oil Drain: -12AN (O-Ring sealed Flange Kit Included)
- Rated at 500-900HP at the flywheel
- Suitable Engine Size: 2.0-6.0L
Applications
- Universal
What's In The Box?
- 1 - PSR 6270G (G40-900) Turbo with Accessories
