Deatschwerks DW300C Fuel Pump

Description

The 340lph DW300c offers the highest flow available in a compact fitment pump. The compact fitment allows drop-in fitment into may popular applications. Quiet operation and pulse width modulation compatibility are delivered via the turbine impeller and computer balanced armature. E85 compatibility is built in via the carbon commutators and a fully encapsulated armature.

All DW fuel pumps are backed by a 3-yr no fault warranty.

Features

• E85 compatible
• 100psi capable

Applications

• Lotus Elise/Exige 04+
• Toyota Celica 00-05
• MR2 Spyder 00-05
• Corolla/Matrix 03-04

Specifications

• Weight - 10.2oz
• External Materials - Electroplated Steel
• Inlet Fitting - 7.7mm ID, 11.0mm OD
• Outlet Fitting - 5/16" Hose Clamp
• PRV Activation - 100psi
• Impeller Design - Single Scroll Composite Turbine
• Connector Terminal - Spade Pos/Neg
• Min Voltage Input - 6 Volts
• Max Voltage Input - 18 Volts
• Current Draw 40psi - 11.7 amps (13.5v)

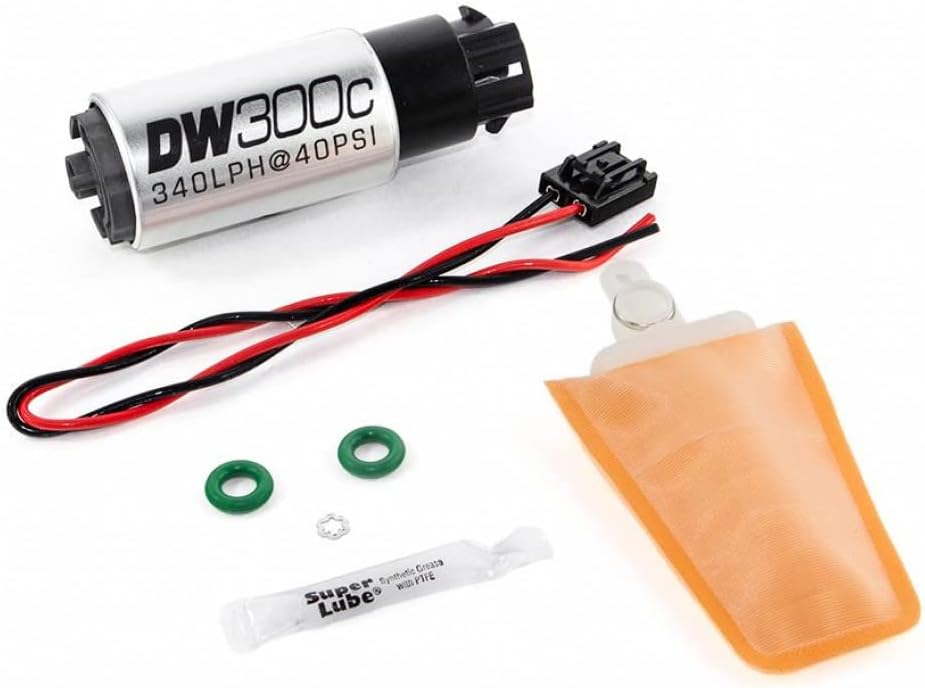

What's In The Box?

• 340lph compact fuel pump w/ mounting clips w /Install kit for Lotus Elise/Exige 04+, Toyota Celica 00-05, MR2 spyder 00-05, Corolla/Matrix 03-04

SKU: DWK9-309-1006
